NEWS
Drilling Waste Management Unit to Western Africa
Drilling waste management have two common ways to treat and recycle: on line drilling cuttings treatment and base mud recycling; off line oily waste sludge removal and treatment. On line waste management is relatively easier to handle because of the flowability, lower density, lower viscosity, the drilling cuttings can be transfer to vertical cuttings dryer directly after discharged from shale shaker. Off line waste management may require more process to get better results.
GN Solids Control is China leading manufacturer for solids control & waste management equipment. GN decanter centrifuge & GN cuttings dryer have been used in many drilling waste/ drilling sludge projects. Recently, we have one drilling waste management unit ready for delivery. The customer is famous oil service company/environmental service company in Western Africa.
Video of GN decanter centrifuge for water based mud: http://www.gnsolidscontrol.com/video/water-based-mud-decanter-centrifuge-argentina
Video of GN cuttings dryer for water based mud: http://www.gnsolidscontrol.com/video/vertical-cuttings-dryer-water-based-mud-drilling-waste

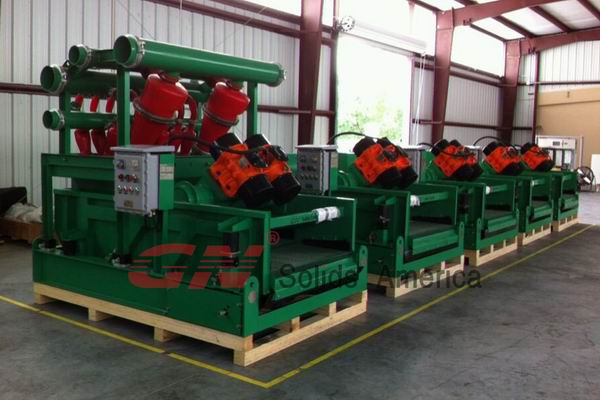

Shale Shaker & Mud Cleaner Exported to USA Warehouse
As the first & biggest solids control brand from China, GN Solids America have operating in USA about 1 year. During this time, GN people working hard on base issues in the first harlf year, like office management, warehouse management, house rental, car problem, clear the equipment from USA Customs, transportation etc. The second half year, GN people working on sales promotion like customer visiting, customer requirement tracking, purchase order tracking, user feedback, after-sales service. Now, GN Solids America have build more and more cooperation ralationship with local drilling service company, mud service company, oil field supply & trading company etc.
USA market prefer to stock equipment for fast response. GN stock equipment in USA warehouse can be completely sold out in a much short time. Based on this, GN just delivery 5 sets shale shaker & 4 sets mud cleaner from China manuacturing base Beijing Factory to USA Houston warehouse. The customer from USA or close to USA may read more detailed specs below if you are interested to buy some.
5 sets Shale Shaker - GNZS594E-HBGN shale shaker have different type, 2 panel shaker, 3 panel shaker and 4 panel shaker. GNZS594E-HB is 4 panel shaker equivalent to Swaco Mongoose shaker, same type Mongoose flat shaker screen, same type wedge installation for fast screen changing.
- Model: GNZS594E-HB
- Vibration mode: Linear motion
- Handling capacity: 140cbm/h (600gpm)
- Vibration motor: 2×1.72kw (Italy OLI brand motor)
- Screen quantity & area : 4 panel, totally 2.73m2
- Screen type: Same as Mongoose composite material screen
Read more from GN official website: http://www.gnsolidscontrol.com/shale-shaker/
Tunnel Shield Project 500gpm Mud System to Thailand
Shield Method is one fully mechanized underground construction Method. The shield machine will be pushed forward, the surrounding rock will be supported by shield shell and segment. At the same time, excavation of soil will be conducted at the front of the excavation face by cutting device; the soil will be carried out by unearthed machiner. After that, the shield machine will be pushed forward again by jack and assembling precast concrete segment, this is the general formation process of tunnel structure.
Tunnel Boring Machine (short as TBM) and Mud system is indispensable for tunnel shield project. TBM as main equipment, mud system as auxiliary equipment to make the TBM working in a high effeciency way. Recently, one Thailand customer bought one set 500gpm mud system to match with TBM machine for Tunnel shield project. Follow to read more about this case.
The 500gpm Mud System Technical Parameters- One unit of double deck 6 panel shale shaker, GNZS706 with upside 3 panel coarse mesh shaker screen (2mm) and downside 3 panel fine mesh shaker screen ( 40mesh). The upside shaker screen area 2m2; the downside shaker screen area 2.6m2.
- One unit of mud cleaner or mud conditioner, GNZJ703-8N with 3 panel deck shaker and 8 pcs X 4inch desilter cones. The separation points 25-40 microns.
- One unit of centrifugal pump (37kw) for feeding desilter cones, the feeding pressure should reach 0.25-0.4Mpa; GN centrifugal pump is interchangeable with NOV mission pump. GN can also offer complete range of spare parts for NOV mission pump.
- Two unit of mud agitator (11kw) to suspend and mix the drilling fluids.
- Two unit of mud gun (2inch, fixed installation type) to working together with mud agitator.
- One unit of mud tank with 4 compartments.
- One unit of separate mud mixing unit, GN jet mud mixer with one mud hopper and one centrifugal pump (37kw). This unit can help supplement drilling mud to the system or add necessary chemicals or water.
Solids Control Equipment Exported to Indonesia
Indonesia once is the unique OPEC nations from Asia. The proven oil reserves, ranking 20th in the world; the proven gas reserves, ranking 7th in the world. With more and more China-Indonesia cooperation in oil gas exploration & drilling, oilfield equipment supply, crude oil imports & exports, Indonesia company focus on drilling rigs, solids control equipment, mud pump with super quality and competitive price.
GN Solids Control as the 1st API certified solids control equipment private company, is the first private company to enter Indonesia market. After that, more and more Indonesia customer ( Big customers like PDSI,Apexindo,Bermindo etc) shift to GN Solids Control Equipment and gradually to use less US brand solids control equipment with highly cost.
Recently, GN is ready to delivery one unit 1000gpm mud system to Indonesia. The mud system is used for one unit 750hp workover rig. The mud system equipped with equipment as below:
- Two unit drilling fluids shale shaker with 3 panel shaker screen & 2 pcs OLI brand vibration motor;
- One unit drilling fluids mud cleaner with 2 pcs desander cones & 12 pcs desilter cones & one unit deck shaker with 3 panel shaker screen.
- One unit drilling fluids vacuum degasser with self-contained unit & level sensor to protect over suction of drilling fluids.
- One unit mud tank with all accessories included. Eg. pipelines, handrails, walkways, ladders, valves, clean gates...
Except for Solids Control Equipment, GN also exported drilling waste management equipment to Indonesia national oil company, Pertamina. The equipment including Hi-G dryer shaker as 1st step drilling cuttings drying pocess equipment, high speed decanter centrifuge as 2nd step drilling cuttings drying process equipment.
GN 1000hp Rig Solids Control System Ready for Delivery to COSL
COSL operated 40 drilling rigs of which 30 are jack-up drilling rigs and 10 are semi-submersible drilling rigs. This make COSL the largest fleet of offshore oilfield services facilities in China. For solids control equipment or mud system & drilling rig, they have continuously huge requirement.
GN Solids Control have exported 2 sets 1000hp rig mud system & 1 Set 10000bbl liquid mud plant to COSL via domestic rig manufacturer.Now the 3rd set 1000hp rig mud system is ready for delivery.Read more:
http://www.gnsolidscontrol.com/drilling-fluids/1000hp-offshore-rig-solids-control-mud-system
http://www.gnsolidscontrol.com/drilling-fluids/liquid-mud-plant-lmp-china-oilfield-services-limited-cosl
GN 1000hp rig Mud System
