GNSL series Jet Mud mixer aslo called mud mixing hopper unit is special equipment to prepare and increase the drilling fluids weight by adding and mixing  bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. GNSL jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD). The unit includes one sand pump, one venturi mud mixing hopper and one jet mud mixing hopper and pump that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. At the same time,we can make Twin-Hopper Unit with two pumps according to the user requirements.It is designed by GN solids control bentonite mud mixer,drilling mud tank jet mixer.

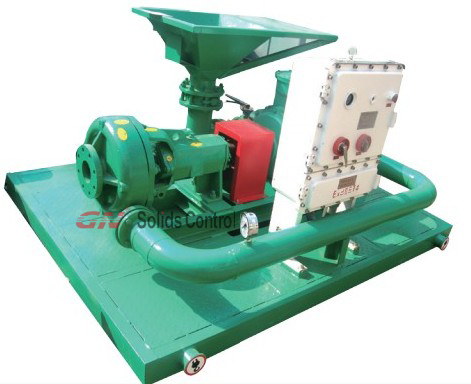

GNSL Jet Mud Mixing Hopper Unit

Jet Mud Mixer 1 Jet Mud Mixer1

GNSL Jet mud Mixing Hopper Unit Technical Parameters

(Customized Jet mixing systems are available)

ModelCapacity(m3/h)Pressure (Mpa)Motor (Kw)Inlet (Inch)Outlet (Inch)Weight (Kg)Dimension L×W×H(mm)
GNSLH-750B 320(1408GPM) 0.25~0.4 75(100HP) 8 6 1785 2200×1840×1150
GNSLH-550B 272(1200GPM) 55(75HP) 8 6 1675 2200×1840×1100
GNSLH-450B 200(880GPM) 45(60HP) 6 6 1475 2200×1840×1135
GNSLH-370B 150(660GPM) 37(50HP) 6 6 1460 2200×1840×1135
GNSLH-300B 120(528GPM) 30(40HP) 5 6 1380 2200×1840×1100
GNSLH-220B 90(400GPM) 22(30HP) 5 4 1167 1850×1540×1000
GNSLH-185B 65(286GPM) 18.5(25HP) 4 4 1147 1850×1540×1030
GNSLH-150B 55(242GPM) 15(20HP) 4 4 970
GNSLH-110B 45(200GPM) 11(15HP) 4 4 950
Remarks  Electric control cabinet should be quoted separately, weight & dimension don't included control cabinet
The above specification and parameters for reference only.

GN Mud Mixing Hopper Technical Parameters

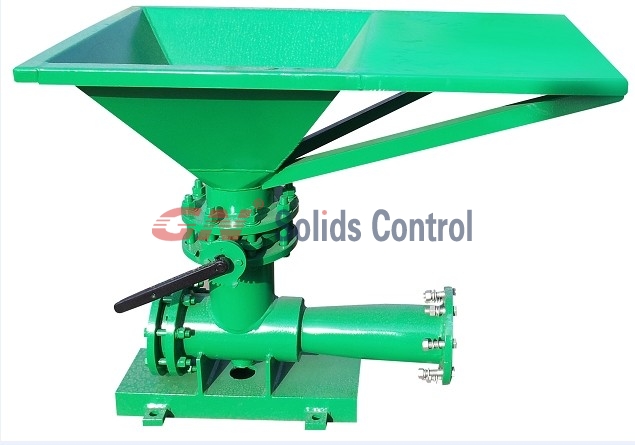

mixing hopper

ModelPressureCapacityNozzleInletOutletWeightDimension: L×W×H
GNSLDSB 0.25~0.4Mpa

500-1500 GPM


40mm 6 Inch 6 Inch 174Kg 1100×680×949mm

200-500 GPM


20mm 4 Inch 4 Inch 113Kg 850×570×851mm
The above specification and parameters for reference only.


1) The material of the drilling mud mixing hopper can be either Stainless Steel or carbon steel.

2) Venturi type drilling mud mixing hopper and vortex type mud mixing hopper are both avaliable for option.

Jet Mud Mixing Hopper System
