Vertical Cuttings Dryer

Categories:

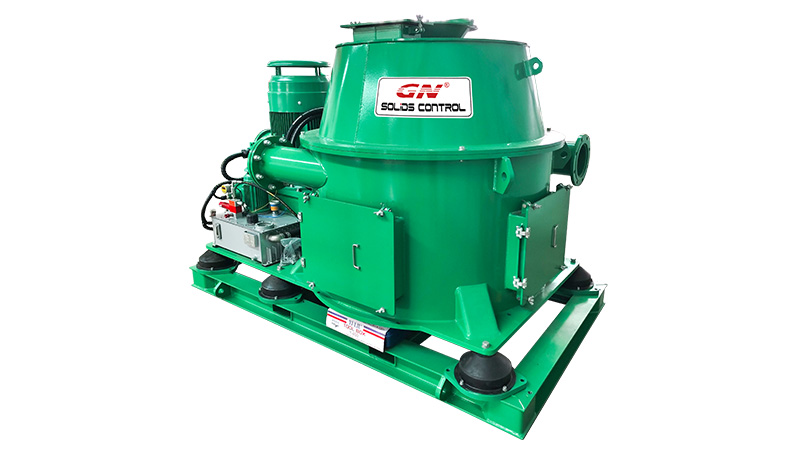

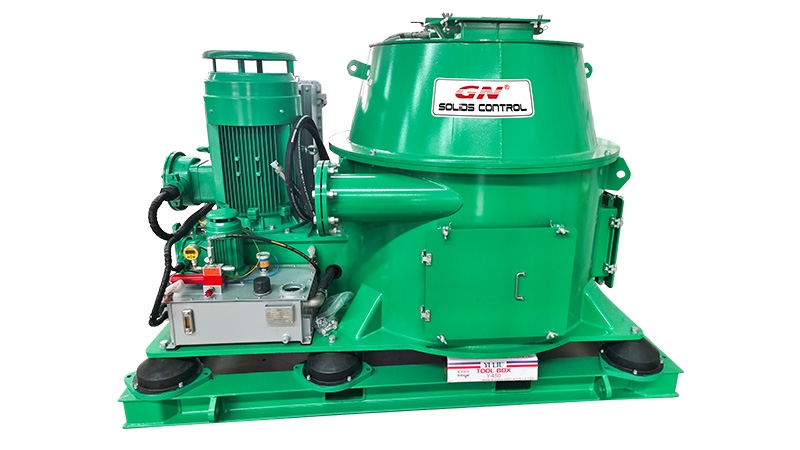

The GN Vertical Cutting Dryer uses centrifugal force to dry drilled solids in oil or synthetic base fluids. A stainless steel screen bowl traps “wet” solids and accelerates them up 900RPM with G force to 420G. Liquid is forced through the screen bowl openings, while “dry” solids are extracted by the angled flights attached to the cone, which rotate slightly slower than the bowl. Tungsten carbide protects the flights from abrasive solids and ensures long operational life. This aids in maintaining a constant gap between the scroll and screen bowl, which is crucial for proper operation.

GN Vertical Cuttings Dryer Features and Benefits

Flights on the Rotor

The Flights on the rotor is hard facing to HRC 65, longer life than our competitors

The flights and the rotor assembly is individually balanced for future replacement

Stainless Steel Screen

Specially designed highly precise stainless steel screen to ensure your better separation, longer life and easy replacement.

The screen itself is individually balanced for future replacement. And the screen is separated from the frame which allows you to change the screen only, not need to change the frame inside.

Air Knife

Special high pressure air knife design to clean the basket screen automatically to avoid the screen blinding especially for high viscosity mud and water based mud

Oil Lubrication System

Individual oil lubrication system with automatic alarm for pressure limit. The main motor and oil pump motor is interlocked with each other for avoiding the start of the main motor prior to the start of the oil pump motor.

Flushing System

All around flushing system through specially designed nozzle to avoid the block of the liquid discharge channel.

GN Vertical Cuttings Dryer Specifications

Model	GNCD930G-GP	GNCD930G-VFD
Capacity	30~50 Tons/H
Drying Efficiency	OOC ≤ 5%
Screen Max Diameter	930mm
Screen Opening	0.25/0.35/0.5mm
Rotation Speed	900RPM	0~900RPM
G Force	420 G
Oil Tank Capacity	48L
Air Knife Input Pressure	0.41Mpa
Air Knife Input Capacity	4.8m³/m
Main Motor	55Kw (75HP)
Back Drive Motor	N/A	11KW(15HP)
Oil Pump	0.55Kw(0.75HP)
Flushing Pump Power	4Kw(5.5HP)
Ex Standard	ExdIIBt4 / IEC EX/ ATEX
Electric Cabinet	Exd	Positive Pressurized
Weight	4800Kg	4900Kg
Dimension	2685 X 1290 X 1723mm
The above specification and parameters for reference only.

GN Vertical Cuttings Dryer Features

More Applications	GN Vertical Cuttings Dryer specially designed for drilling cuttings from Oil Based Mud（OBM） and Synthetic-based Mud (SBM).
High G Force	GN normal vertical cuttings dryer speed is 900 RPM with G force up to 420 G and VFD drive is optional for adjust the speed.
Bearing	FAG Brand premium bearing.
	The Flights on the rotor is hard facing to HRC 65, longer life than our competitors. The flights and the rotor assembly is individually balanced for future replacement.
	Specially designed highly precise stainless steel screen to ensure your better separation, longer life and easy replacement. The screen itself is individually balanced for future replacement. And the screen is separated from the frame which allows you to change the screen only, not need to change the frame inside.
	Special high pressure air knife design to clean the basket screen automatically to avoid the screen blinding especially for high viscosity mud and water based mud. All around flushing system through specially designed nozzle to avoid the block of the liquid discharge channel.
	Individual oil lubrication system with automatic alarm for pressure limit. The main motor and oil pump motor is interlocked with each other for avoiding the start of the main motor prior to the start of the oil pump motor

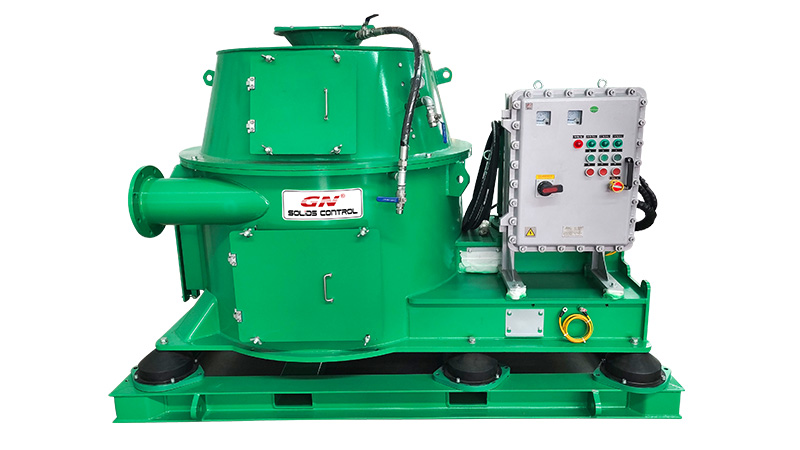

	GN VFD cuttings dryer control panel is made by stainless steel with Pressurized explosion proof. The PLC smart control allows you to adjust the speed and protect the machine more friendly. The air circulation through the cooling tubes allow you to use the VFD cuttings dryer in high temperature environment. The VFD is ABB or SIEMENS Brand, other main electric components are Schneider or SIENMENS Brand.
