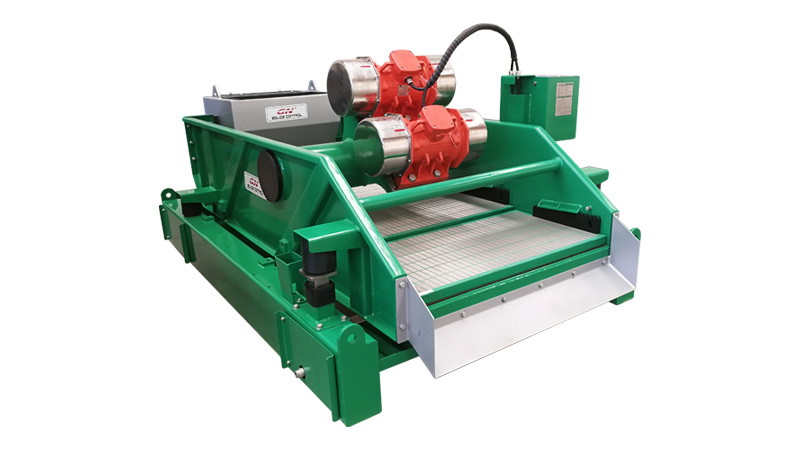

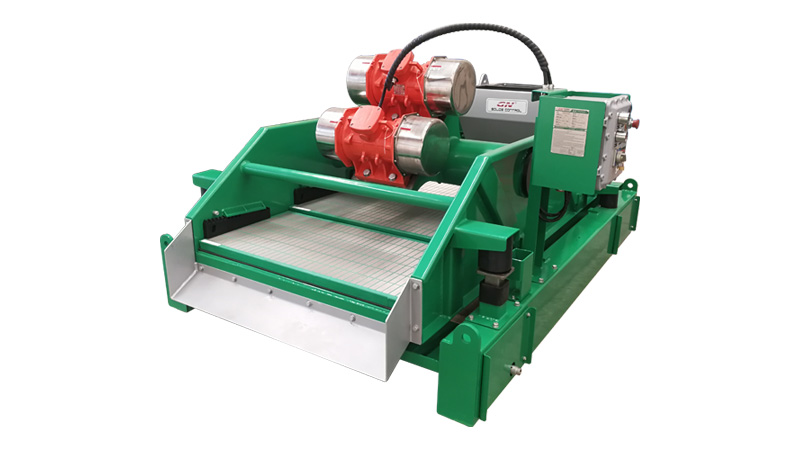

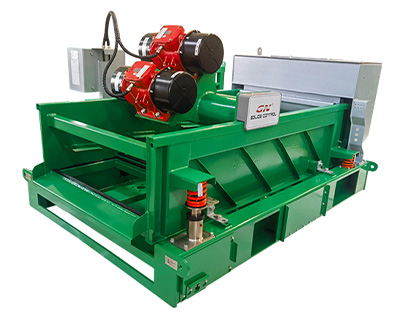

Shale shaker is first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system. GN Solids Control can design double shakers and triplicate shakerson single skid according to clients’special requirements and also supply relevant connecting manifold, according to current industry situation, GN provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.

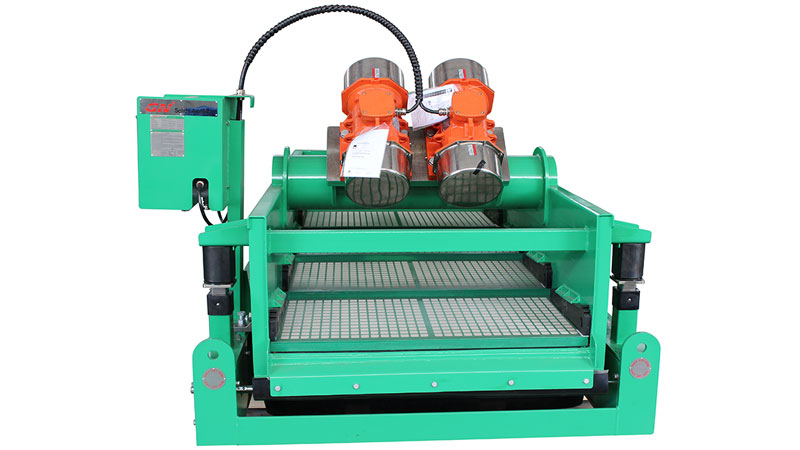

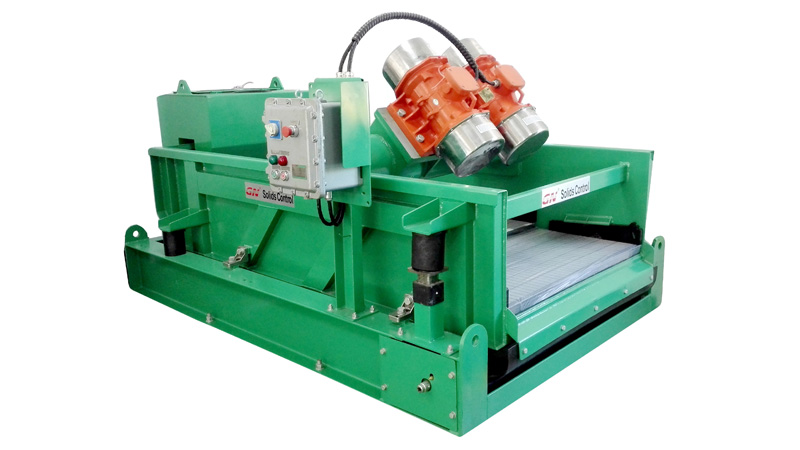

GNZS linear motion shale shaker absorbed advanced tech at home and abroad ,and integrated GN own design. GN complete series shale shaker can meet customers’ variable demand. Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.
Features & Benefits of GN Linear Motion Shale Shaker:
- The entire shaker deck undergoes heat treatment to relieve welding stress, enabling it to withstand high G force.
- The shaker screen is installed with a mechanical ratchet wrench gear for quick tightening, facilitating easy disassembly and ensuring long-lasting durability.
- The wedge blocks for tightening the screen mesh are made of nylon, providing high temperature resistance, corrosion resistance, and wear resistance.
- Vibration motor: Italian OLI brand.
- Polyurethane material is used for sealing between the shale shaker and screen, ensuring a long service life and easy replacement.
- The supporting rubber strips for the bottom frame of the vibration screen are made of stainless steel, offering strong corrosion resistance and a long service life.
- The electrical control box is made of aluminum alloy/stainless steel explosion-proof material, ensuring good sealing and strong corrosion resistance.
- The pre-tensioned shaker screen allows for convenient and quick disassembly and replacement.
- The mud outlet can be switched between bottom and side outlets, accommodating flexible installation on site.
- The angle of the shaker deck can be mechanically adjusted while working at both ends , adapting to different processing capacities.
GNZS752 series Mini shakers have been widely used in trench-less HDD, water well drilling, diamond core drilling etc., best option for compact system and low flow rate. GNZS594 series single deck shale shaker is popular in oil gas drilling, big trench-less HDD projects, or other industry separation demand. GNZS596 series double deck shaker is properly designed for piling, TBM, big oil gas rig, big trench-less project, or the industry separation for multi- phase separation. Shale Shaker Technical Parameters
Model GNZS752K GNZS594K GNZS595K GNZS596K Vibration Model Linear Motion Linear Motion Linear Motion Linear Motion Reference Capacity 45m3/h(200GPM) 140m3/h(616GPM) 175m3/h(770GPM) 140m3/h(616GPM) Vibration Motor 2×1.5kW 2×1.94kW 2×1.94kW 2×2.2kW Screen Qty 2pcs 4pcs 5pcs 6pcs Screen area 1.35m2 2.73m2 3.41m2 Top Deck:1.36m2
Bottom Deck:2.73m2Adjust G Force ≤7.5G ≤7.5G ≤7.5G ≤7.5G Vibration Amplitude 4.14~5.96mm 4.14~5.96mm 4.14~5.96mm 4.14~5.96mm Deck Angle Range +2° -1~+5°(Adjustable) -1~+5°(Adjustable) -1~+5°(Adjustable) Feeding Type Weir Feeder Weir Feeder Weir Feeder Weir Feeder Weir Height 773mm 958mm 958mm 1038mm Weight 1214Kg 2138Kg 2337Kg 2428Kg L×W×H(mm) 2303×1610×1356 2970×1995×1619 3265×1995×1919 2970×1995×1669 Remarks Above capacity only for reference, actual capacity will be various as per screen API No. and mud conditions The above specification and parameters for reference only. ViST Vacuum Shale Shaker
Shale Shaker for drilling fluids solids control

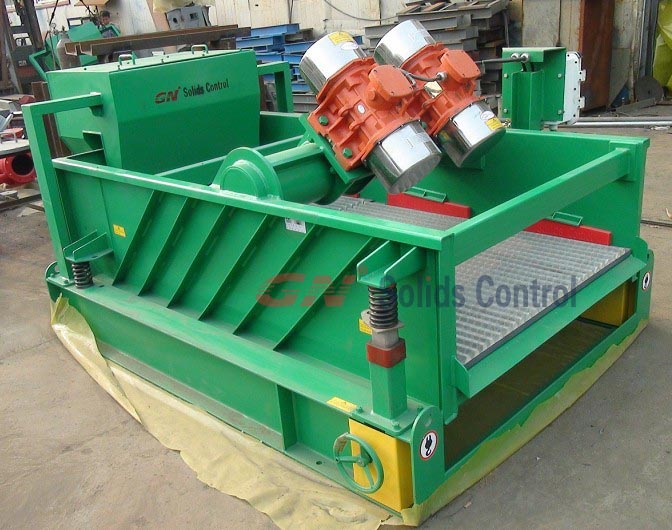

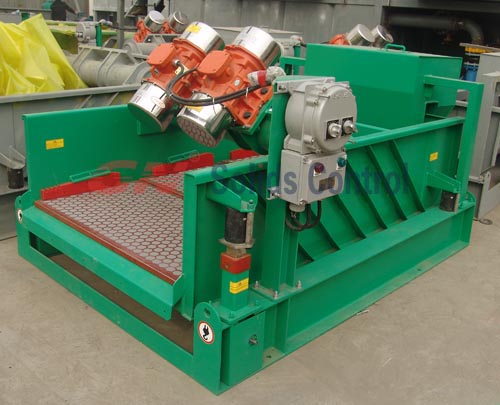

Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. There are many different designs and research into the best design is constantly ongoing since solids control is vital in keeping down costs associated with the drilling fluid. The basic design consists of large, flat sheets of wire mesh screens or sieves of various mesh sizes that shakes or vibrates the drill cuttings, commonly shale shaker, across and off of the screens as the drilling fluid flows through them and back into the drilling fluids processing system, often called a mud system. This separates the drill cuttings, often called solids, from the drilling fluid so that it can be recirculated back down the well bore. In oilfield industry,linear motion shale shaker are widely used for drilling mud solids cotrol of oil gas well drilling for rig.
China manufacturer GN Solids Control offer the world with drilling mud shale shaker equipments. We are an exporter of drilling fluid shale shaker for Indian, Russian,middle east.etc. Oilfield Company of the United States and Century Int'l Oilfield Equipments LLC of the United Arab Emirates etc. choose us as supplier. Our factory and company are Quality Management System ISO 9001-2000 certified. GN Solids Control operate international oil gas drilling mud separation system sales,service,manufacturing,distribution service. Buy Linear motion shale shaker from China manufacturer. Your ideal shale shaker deal starts here.Read more for GN Shale Shakers
