Drilling mud Equipment

Offshore drilling is becoming mutual, and focus more on environment and health, to keep the world better and more beautiful. So drilling fluid circulation are more and more important than before.

For offshore drilling, there are some big players in the world. Aker Solutions’ wholly-owned subsidiary STEP Offshore has delivered a drilling fluid and well control system to Rolls-Royce Marine, which will be used on the Yme field in the North Sea. The Aker Solutions unit made a fast and efficient delivery of an ultra compact skid mounted system for drilling fluid circulation and well control to the customer.

Although, GN Solids Control also can supply similar drilling fluid circulation equipments for offshore drilling site.  As an API & ISO certificated company, GN Solids Control focus on solid liquid circulation system (equipment) manufacturing, and GN can supply one stop solution for drilling rigs, or a certain offshore drilling site.

For the offshore drilling fluid circulation, the equipment usually contains:

1. Shale Shaker, now GN Solids Control invent their own patent balanced elliptical motion (BEM) shale shaker

2. Mud Cleaner, with BEM shaker, or linear motion shaker, and high quality hydrocyclones, (stainless clamp and valve).

3. Mud Agitator, GN can supply high efficient agitator for drilling site.

4. Decanter Centrifuge, top advanced technology.

5. All other related equipment.

Also,  products of GN Solids Control got highly appreciate by the customer.



This message is from one of them:

We run our gn 500gpm mud recycler one month ago on a job,and everybody was really happy.It is a real good system.

As a leader of solid liquid separation plants in China, GN Solids Control now march to piling field, GN50 is the first desanding plants for piling, and it will be exported to Pakistan. GN also can supply GN 100 (treating capacity 100 cbm), or other customized desanding plants.

Desanding plants are also a very important part of liquid solid separation, and GN 50 can also applicant in other fields, like mining industry, well drilling, deep drilling and so on.

The main components of all desanding plants are: Coarse screen for intercepting stones larger than 5 mm;  Storage tank of the coarse screen;  Cyclone with cyclone feeder pump for removing fine particles from the suspension; Dewatering screens for abstracting further water from the solids dis-charged by the cyclone. GN 50 use high efficiency linear motion shale shaker, with OLI brand motor, high quality centrifugal pump. Continue reading “Desanding Plants in China”

Submersible mud agitator is also used widely in oil & gas drilling, for the drilling work is usually complicated. To prevent

sedimentation, that is why we use mud agitator, but the suspend type is not usually suitable for all kinds of condition.

Drilling mud is composed of extremely small particles and has a thick consistency. Its settling velocity is therefore low, and sediment should not be a problem if the contents in a tank can be kept in motion. But, due to the combination of the irregular shape of tanks and the inefficiency of conventional mixing systems, sediment build-up is a timeconsuming and expensive problem.

Features and Advantages:

•   No sedimentation – the agitator suspends the solids, counteracting the mud’s tendency to stratify.

•   Full tank volumes – by preventing sedimenta-tion, the full volume of a tank will always be available, allowing for prolonged drilling opera-tions.

•   No manual clean-out – ends time-consuming and expensive manual or mechanical removal of sediment.

•   Problem-free pumping – with well-mixed drill-ing mud, problems are avoided when pumping the mud.

•   Monitoring and control – we supply monitoring devices, for full operator control.

•   Faster batch productivity – the combination of high turbulence and high flow results in fast batch turnover.

Applications:

Submersible, then it must be used in tanks, or something alike. Mud tanks in supply ships, drilling rigs, mud plants.

If you need more info., Contact GN.

200-300 gpm mud system is widely used in HDD, underground work, or trenchless work sites. Like all the brands you know, GN Solids Control can supply all kinds of mud system.

Features and benefits of GN 300 gpm mud system:

Compact and ease of mobilization.

New and advanced BEM shaker, designed by GN and Southwest Petroleum University

Top qulity materials

API manufacturing and quality control process

User freindly design

GN 300 gpm mud system including:

One 6000mm×2300mm×1550mm mud tank

One BEM (balanced elliptical motion)852 Shale Shaker + Hydrocyclones, all cones are 100% PU, and with stainless steel ball vavle and clamp, also customized.

One SB5x4 centrifugal pump (30hp, 22kw) with machenique seal

One JBQ 5.5 mud agitator,

One SLH150-35 Jet Mud Mixer, one SB5*4 pump including,

All necessary plumbing for above equipment

Electrical System to include receptacle, main braker florescent rig lights, wire, conduit, junction boxes, electrical motors and single panel control box

Continue reading “300 GPM Mud System”

Vortex Mud Hopper is the replacement hopper for Venturi hopper.Both mud hopper are used in mud mixing system for adding chemicals.Connect the hopper with centrifugal pump and mixing tank,it will consist to be a mud mixing system.

Traditional Venturi mud hopper

A mud-flow device, also called a jet hopper, in which materials are put into the circulating mud system. The mud hopper is powered

by a centrifugal pump that flows the mud at high velocity through a venturi nozzle (jet) below the conical-shaped hopper. Dry materials are added through the mud hopper to provide dispersion, rapid hydration and uniform mixing. Liquids are sometimes fed into the mud by a hose placed in the hopper.

Advantages of Vortex Mud Hopper

Compare with Venturi hopper  the Vortex hopper has following advantages

a) Effective mixing time in vortex hopper  is longer and the result is better.

b) Material feed caliber is bigger to prevent feeding jam and increase feeding rate.

c) Vortex hopper  is suitable for various materials and is widely used

d) Vortex mud hopper  has no limitation for the size of material particles and will not be jammed by solid deposit when left unused for long period

Vortex mud hopper  mixes solids  additives with drilling fluids evenly. It is suitable to the basic equipment in configuration of equipments for drilling fluids. Vortex mud hopper adopts rotational flow mixing technology, and can fill bentonite and barite, etc into drilling fluids quickly in order to be adapted to complicated drilling process. This product is of good mixing effect, quick filling of material, and with no-blockage.

Professional at solids liquids separation, now GN road to the piling field. In Desander for Piling construction, we introduce the piling slurry recycle and the process of the piling slurry treatment. Now we are going to talk about the application and the desander for piling in the piling construction system.

Piling Introduction

Foundations relying on driven piles often have groups of piles connected by a pile cap (a large concrete block into which the heads of the piles are embedded) to distribute loads which are larger than one pile can bear. Pile caps and isolated piles are typically connected with grade beams to tie the foundation elements together; Continue reading “Piling Slurry Treatment”

The main function of the mud system of ZJ50 drilling rig is: recycle, clean the drilling fluids with debris from the wellhead. this system can eliminate sands less than 7μm in size, and supply drilling rigs with satisfied drilling fluids.

1． The installation

Level off the work site, set a good base. As show as figure 1 : install and fix GNPS70-3S shale shaker & ZQJ250 × 3 / 100 × 16 mud cleaner and jet mud mixer SLH150-50. connect all manifolds ,walkways, guardrails ,ladders, etc.. Ensure all parts flexible and on the good site. Connect inlet manifolds as showed. Connect all the solids control equipment control circuit connectors.

2. Working process of the recycling system

Firstly, start up the shaker box locking device of GNPS70-3S shale shaker & ZQJ250×2/100×16 mud cleaner (as to its operation please refer to the related user manual), and have a trying operation. And ensure all valves not been blocked . The butterfly vavles should be shut up while connecting the mud cleaner pipes. Send drilling fluids to the mud cleaner while bigger capacity needed.

Then, start up GNPS70-3 shale shaker & ZQJ250×2/100×16 mud cleaner. Continue reading “ZJ 50 Mud System Operation”

The GN  Ditch Magnet is a junk retrieval tool designed to remove metal particles from drilling mud. The Ditch Magnet Removing metal particles from the drilling mud that the shale shaker will not get. This unit will capture all metals having magnetic attraction and hold them until they can be removed from the mud stream. The Magnet is particularly valuable during milling operations. Removal of mill cuttings and debris reduces wear of mud pumps and other equipment, as well as eliminating problems caused by the return downhole of harmful debris. They are equally effective during washover and fishing jobs.

Construction of GN Ditch Magnet

Ditch magnet consists of a main body and a fixed support which are all made of stainless steel. The main body is composed of two layers, both top and bottom surfaces of each layer can adsorb scrap iron. The main body is made of imported magnet with the highest absorbability, which feathers high absorbability, large adsorption area and long service life. The installation method is: hang the fixed supports at the two sides of the ditch magnet to the mud with four 800 mm stainless steel chains.

Models available for the Ditch Magnet

GN has standard models ditch magnet of 495mm length,860mm lenth.GN also provide customized Ditch Magnet to fit for customer’s applications.GN Drilling mud Ditch Magnet can be used for GN own made Shale Shaker,and Other brands like Derrick ,MI-Swaco,NOV Brandt,Other USA and China made shale shakers.

Specicifations for GN495  Ditch Magnet

⑴ External dimensions           200mm×200mm×495mm

⑵ Usage temperature            ≤145℃

⑶ Coercivity                   10.8 kOe

⑷ Intrinsic coercivity                  ≥21 kOe

⑸ Maximum magnetic energy product       268 kJ/m³

⑹ Weight                5.2kg

To learn more info.and get a quote from GN or the ditch magnet,pls contact GN Solids Control.

Other Brand Ditch Magnet

Bowen  Ditch Magnet Construction:

The Bowen  Ditch Magnet features simplicity, ruggedness and high power-to-weight ratio. The 36-inch long Magnet weighs only 90 pounds and will hold in suspension as much as half this weight of mill cuttings. The design is clean; eliminating trays, gates and other auxiliary equipment. The magnet is encased in stainless steel and has integral handles at each end for lifting.

Bowen  Ditch Magnet Operation:

No special instructions are required to operate the Bowen Ditch Magnet. It is most effective when suspended by soft line in the mud ditch. It may also be suspended by soft line in the shaker discharge. The unit should be cleaned several times per day, depending on milling rate. Just remove the Magnet and clean with fresh or salt water hose. Wipe all cuttings from the unit and return it to duty. The unit may be cleaned less often during other operations when return cuttings come slower.





Driller mud system and GN Solids Control both are very famous drilling equipments company. Here I am going to compare these two companies.
Drillers Mud Systems, LLC offers a variety of mud pumps, mud mixing/ recycling systems, spare parts and tooling designed to fit in Horizontal Directional Drilling or Oilfield applications. It can supply all of HDD or drilling needs.

GN Solids Control (Tangshan Guanneng Machinery Co.Ltd) is a company focus on solid liquid separation. We can supply all kinds of solids control equipments for oil & gas drilling, mud recycling system for HDD.

Continue reading “Driller Mud System vs GN Solids Control”

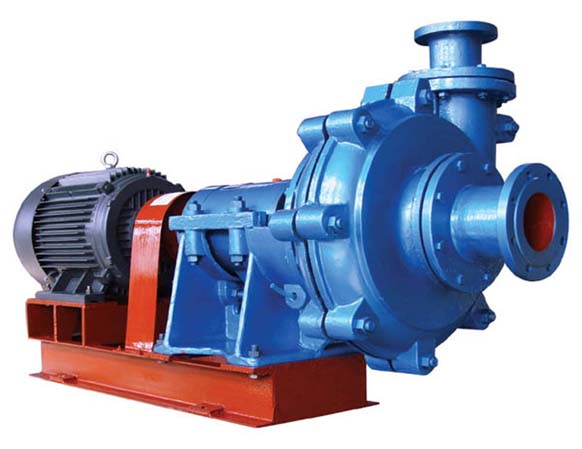

Slurry pump is widely used in oil&gas drilling work, mining programs and so on. Variable Frequency Drives Slurry Pumps is one kind of slurry pump, and main body is the same with other slurry pumps. And it usually not used so widely as usual ones.

Any way if you need to choose a right Variable Frequency Drives Slurry Pumps, firstly choose the right pump, then the motor, then maybe control panel is needed.

GN Solids Control supply kinds of slurry pumps for all kinds of application, especially in oil and gas drilling. If you want to get the right model from us, usually you must supply these informations:

1.the productivity (flow) you required;

2. the lift you required, or the envioment in your work site, is there any difference in height of the related equipments and others (mud pits for example).

3. Do you need horizontal or vertical pumps?

4. Importantly do not forget to what kind of material you are pumping, if it contains something like H2SO4 or other corrosive materials. Continue reading “Variable Frequency Drives Slurry Pumps”
