There are different types of centrifuge with different speed for drilling fluids processing. For a more viable application on centrifuges for different kinds of treating of drilling fluids, many customers choose variable frequency drive (VFD) centrifuge decanter.
But always, they are wondering about how to choose the right speed for a certain application for the best performance. Actually, it is G force who effect the performance of separation. We choose the suitable speed for the right G force.
Below, we take example of a GNLW363VFD centrifuge. It is the equivalent model for Swaco 518 and Derrick DE-1000 centrifuge for drilling fluids processing.
Swaco 518 Equivalent Model Decanter Centrifuge
There mainly 3 functions for drilling fluids processing:
1) Barite recovery: It usually uses middle speed centrifuge. It is the first separate with decanter centrifuge in the drilling fluids purification. Lower G force around 1000 usually required. Per difference of mud, users can adjust speed to change G force in small scope. For GNLW363VFD centrifuge, users can adjust speed around 2200rpm.
2) High Gravity Solids (HGS) with lower speed: usually, around 1200G. With GNLW363VFD centrifuge, users adjust speed around 2500rpm
3) Low Gravity Solids (LGS) with high speed: G force around 2000G. Like fine solids separation, it needs higher speed. With GNLW363VFD centrifuge, users adjust speed around 3200rpm
GNLW363VFD centrifuge is the hottest model from China top manufacturer for Solids Control and Drilling Waste management, Unlike Derrick and Swaco centrifuge, GN centrifuge design is also available for mechanical changing of centrifuge speed. For some professional customer with tighter budge, but like top quality, GN Solids Control company will offer 3 different types of pulley for 3 different speeds.
For more information on drilling fluids decanter centrifuge, you can contact with GN Group for solution.
Mud recycling system for oil and gas drilling rig a very important part for drilling rig. Smart buyer will separate the mud system with rig rig. And GN Solids Control as the biggest solids control exporter in China is their best choice.
As China top 1 solids control company, in many cases, the customer will inquire GN better brand of land drilling rig. They now give list of the top 10 land drilling rig manufacturer companies in China.
Baoji Oilfield Machinery Co., Ltd (BOMCO), as the leading enterprise of R&D and manufacture of oil drilling rigs and production equipment in China, It is the earliest established, largest and most powerful oil drilling rig and production equipment developer and manufacturer under CNPC, the largest research and production base of land rigs and series mud pumps in the world, and also the largest and most powerful base for R&D and production of wire ropes for special purposes in China.
Lanzhou LS-National Oilwell Petroleum Engineering Co. Ltd. (LS-NOW for short) is a Sino-American Joint Venture established between Lanzhou Petrochemical Machinery Equipment and Engineering Group Corporation (LS Group) and National Oilwell International, Inc. (NOI). Scope of business: design, develop and manufacture complete land and offshore drilling rigs and workover rigs, and provide equipment package, components, fittings, parts and full services.
Main products: serial drilling rigs that are electrical or mechanical or electrical-mechanical compounded driven and suitable for different applications such as land, shallow, offshore and desert and meet the requirements of drilling and workover services. The drilling depth ranged from 1000 to 9000 meters.
Sichuan Honghua Petroleum Equipment Co., Ltd., established in 1997, is a subsidiary of Honghua Group which has been listed successfully in the Stock Exchange of Hong Kong. The company has been engaged in research, design, manufacturing and general assembly of oil drilling rig and equipments for oil exploration and development. Now it is the world’s second land drilling rig manufacturer, and China ‘s largest exporter of drilling rigs.
The company produces mainly various land drilling rigs for drilling 1000m to 9000m wells and offshore drilling modules– DC drive drilling rig, AC VF electric rig, mechanical drilling rig, composite drive rig, trailer mounted rig and independent RT electric drive drilling rig, as well as their matched equipments, i.e. drilling pumps, traveling block system, solid control system, electric control system etc.
750hp drilling rig mud system running in Middle East
RG PETRO-MACHINERY (GROUP) CO. LTD is one of the largest manufacturers for petroleum drilling rig equipment in China. It is a stock company, reorganized from Nanyang petroleum machinery plant (former No.2 Petroleum Machinery Manufacturing Plant of National Petroleum Industrial Ministry of China). As a former national technical equipment production base, authorized by former national economic and commercial committee of China, RG PETRO-MACHINERY (GROUP) CO. LTD has become a company for national new product trial production of China, light-duty drilling rigs production base of SINOPEC and a high-tech enterprise in Henan Province.
RG PETRO-MACHINERY (GROUP) CO. LTD, with its technical center, information center and quality inspection center at provincial level, has possessed 16 production plants for forging, metal machining, heat treatment, steel-structure manufacturing, general assembly, painting and new product trial production, and 3 comprehensive testing sites for drilling rigs as well as 2 Sino-American joint ventures and 2 share-holding joint ventures.
SJ Petroleum Machinery Co. , one of petroleum drilling rig and production equipment backbone manufacturers and Manufacturing Base for National Key Equipment (Workover, Cementing and Fracturing Equipment) recognized by National Economy and Trade Commission, has provided lots of advanced equipment to domestic customers in lieu of expensive imported equipment, and played an important role in increasing profits of petroleum industry and decreasing domestic oilfield development cost.
6) Kerui Oil drilling rig
Shandong Kerui Holding Group is located in Shengli Oilfield the second largest oilfield in China. Its arranges a wide range of businesses covering the scientific research and manufacture of the petroleum drilling equipment and oilfield engineering technical service. The main products manufactured and supplied include drilling equipment, Oil pumping equipment, Special equipment for oilfield, Oilfield tubing system and auxiliary machines and tools. Kerui can manufacture various workover rigs and drilling rigs with drill depth from 3000m to 9000m. All products meet API standard.
(Shanghai) petroleum equipment co., ltd. is established on August 2001. the 3H is the first rig manufacturer that introduces ship-building technology to the fabrication of petroleum equipment.
The 3H is conferred as:
– the high-tech enterprise of shanghai municipality;
– the advanced technology enterprise using foreign investment of shanghai municipality;
– the core enterprise with well-known product of hongkou district of shanghai municipality;
– the recommended demonstrating enterprise of intellectual property of shanghai municipality.
Main business activity covers the design and manufacture of the following series of:
– electrical, mechanical drilling rigs, and electro-mechanic rigs with the drill depth from 2,000 meters to 9,000 meters;
– module offshore drilling and workover platforms, module offshore drilling rig, polar drilling rigs, and truck mounted rigs;
– electrical driving control and system, and;
– main rig components of crown blocks, traveling blocks, hook, mud pump, swivel, and etc.
Shengli Oilfield Highland Petroleum Equipment Co., Ltd Established in 1992 was a private incorporated manufacturer of petroleum equipments located in Dongying city, Shandong province, the PRC. Through many years development, the company had been recognized and become well-known in petroleum industry achieved the superior position in the field of scale, product quality, technology ensuring and selling service and so on in petroleum equipment manufacturing in China.
Please contact GN Solids Control for more and detailed contact information for more China largest oil drilling rig manufacturer company information.
High G shale shaker (H-G) is a kind of dryer machine used for drilling cuttings waste management.Vertical G cuttings dryer (V-G) is anther dryer machine for drilling cuttings waste management.
Many customer wondering the difference of the 2 kinds of dryr and do not know how to choose the suitable one.
High G shale shaker (H-G) VS Vertical G cuttings dryer (V-G)
GNZS594 High G shaker dryer
1) Price of Vertical G cuttings dryer (V-G) is much more higher than High G shale shaker (H-G)
2) Their application field is different. High G shale shaker (H-G) is mainly used to treat water based mud drilling cuttings. While Vertical G cuttings dryer (V-G) mainly used to treat oil based mud drilling cuttings
3) High G shale shaker (H-G) can be used to separate oil based mud drilling cuttings, while Vertical G cuttings dryer (V-G) cannot used to treat water based mud drilling cuttings
Vertical G Cuttings Dryer
Difference of High G shale shaker (H-G) & Vertical G cuttings dryer (V-G) for oil based mud (OBM)
Both High G shale shaker (H-G) & Vertical G cuttings dryer (V-G) can be used for oil based mud, but there is difference on performance.
High G shale shaker (H-G) can reduce the oil on cuttings (OOC) to 15~20% after treatment. For many customer, it is not dry enough. Other treatment process is necessary. But the Vertical G cuttings dryer (V-G) can reduce the oil on cuttings (OOC) to 3~5%. The discharge from Vertical G cuttings dryer (V-G) can take away directly for road construction or other function. Or Feed to Thermal Desorption Unit for further treatment.
GN Solids Control is the only 1 API certified solids control company who can make both High G shale shaker (H-G) & Vertical G cuttings dryer (V-G) in China. For more information of the dryer machine, contact GN group freely.
China Manufacturing Base:
Company Name: HeBei GN Solids Control Co.Ltd.
HQ Address: No.3 Industry Road,Dachang Chaobai River Development Area, Langfang,China 065300
There are rubber ring for sealing on most shaker screen model, like Derrick503 screen, Derrick48-30 shaker screen, Brandt Cobra shaker screen, GN Solids shaker screen, and many other shaker screen models.
Functions of the sealing rubber:
1) Sealing between screens and shaker deck. To avoid un-treated dirty mud seep into mud system, and damage the mud system machine.
shaker screen sealing rubber
2) To reduce the bad effect of vibrating to the shaker screen. Protect screen from strong vibrating.
What will happen if the sealing rubber not workable
1) The screen frame will touch directly with shaker deck, and damaged within a very short time
2) The worst result is, if the screen rubber damaged, the dirty mud from well head will flow into mud system directly with much solids. It requires a higher capacity on downstream equipment processing, or even make damage to the downstream machine, like desander, desilter or vacuum degasser
If the material of the sealing rubber not strong enough and not very good at anti-corrosive, the high temperature drilling mud with heavy sand will damage the rubber very soon. The shaker screen will be broken very soon. Dirty mud flow into the mud system from the shale shaker deck with heavy sand and solids. It will have bad effect to the mud system.
GN Solids Control utilzie high quality material for sealing rubber. They can offer high quality shaker screen with reasonable price.
GN Solids Control has already developed the 20 foot containerized dewatering unit for drilling mud recovery, as without the chemically enhanced technology, operators would be left with the accumulation of colloidal and ultra-fine drilled solids in the drilling mud circulating system. Ultimately leading to excessive mud densities, pipe torque/drag, mud loss, disposal fees, and overall well cost.
GN 20 foot Containerized Dewatering Unit
GN 20 foot containerized dewatering unit including all the components for adding chemicals, dewatering polymers,and mixing systems. The dewatering unit control system is organized by the PLC system to allow automatically operation. The customter mostly use the dewatering unit for water based mud.The result is a polymer-enhanced flocculation of colloidal and ultra-fine drilled solids that can be efficiently removed by a GN high Speed decanter centrifuge.
The customer can choose to have the decanter centrifuge on a separate skid or included in the dewatering unit container, in such case the container should be 40 foot size to have enough space for setting up the centrifuges and the feeding pumps.
Dewatering Unit
Some case studies for the drilling mud dewatering unit
The Dewatering unit application at the well allowed reduction of the liquid-waste volume by 32% for the first two sections and by 27% for the entire well. Around 350 m3 of water was returned to the system for fresh drilling fluid mixing thus reducing the cost of water delivery. All drilling fluid left after the last section was also processed through the Dewatering unit and the returned water was used for completion operations. Although application of the Dewatering unit added additional upfront cost to the well construction, the waste-volume reduction allowed a 20% waste disposal saving as compared to offset wells. Continue reading “20 foot containerized dewatering unit for drilling mud centrifuge”
Solids Control Equipment for the 500GPM mud cleaning System
1) One Linear Motion Shale Shaker GNZS703
2) One Mud Cleaner with Desander / Desilter
3) Centrifugal Pumps 6×5 (37kw) for feeding to desander/ desilter
4) 40 Feet Size length and width ISO container size with fast fixing on trailer.
5) Centrifugal pumps completed with mixing hoppers for you drilling mud mixing.
6) Transfer function for transfering clean mud to the drilling rig mud pump.

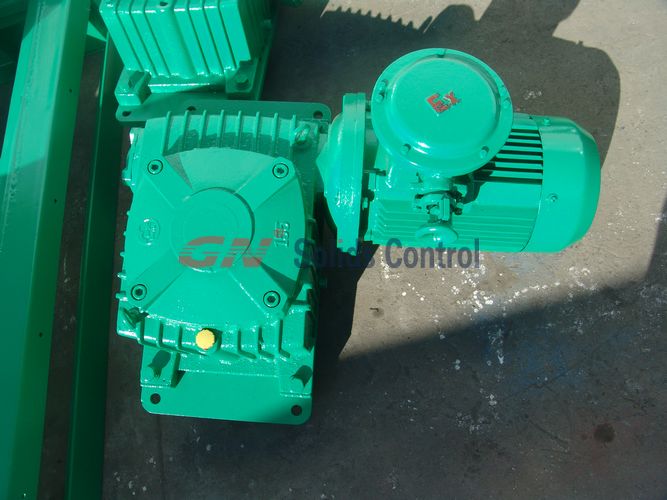

7) Mud Agitators and Mud guns for agitation of the mud.
8) High quality mud tank attachment for easy operation and safety, Handrails can be fold up to the side of tank without removing during shipment.
Mud tank size for the mention proposal of 500GPM mud cleaning system is a common standard; it can meet the shipment limitation of most countries. GN can also customize other tank size per customers’ requirement on tank storage capacity.
For equipment, GN can also change other model per different requirements of different jobsite. For some jobsite, they may only need separate desander and desilter without the underflow shale shaker, it is also option.
For a more exact proposal, no hesitate to contact GN Group now.
GN Solids Control designed mud recycling system with desander for the Civil Engineering of Foundation Bored Pile machine. After recycling and cleaning the bentonite of you bored pile project, it saves you cost of mixing more bentonite as well as saves more cost for the disposal of the bentonite.
General Specifaction of GND-120 Bentonite Mud Rycling unit for Pile Foundation.
Handling Capacity: 120 m³/h
Bentonite mud reycling
Equipment Weight:2700KG
Equipment Dimension:2.1×2.5×2.7m
Total Power require:38.5Kw
GN Also have the 60 m³/h, 240 m³/h size avaible for your foundation bord pile bentonite mu reycling.
GN Desander for Pile Bentonite mud Recycling including
1） A pit slurry pump suck fluids from the foundation slurry pit and feed to the GNZS703D-1S Desander Bottom Shaker.
2） The first phase cleaning is processed by the bottom shaker deck of GNZS703D Shaker, and the cleaning fluids drops down to the mud tank.The solids up to 0.5mm will be separated out.
3） A GNSB6x5-12J Slurry pump suck Bentonite fluids from the mud tank, and feed to the ten inch desander cyclone, and solids drops down to the up deck shaker for drying, and the clean fluids goes to the second compartment of the mud tank.The solids up to 50 microns will be separated out.
4） The outlet of the second compartment of the mud tank is clean fluids can go to clean fluids pit for reuse for your foundation pile project.
Decanter centrifuge is widely used in drilling site, like oil and gas drilling, coal bed methane (CBM), HDD. GN Solids Control is China leading manufacturer on high quality decanter centrifuge. GN decanter centrifuge model GNLW363 is equal to Derrick DE-1000 and Swaco 518. GN can offer this centrifuge model in stock with very competitive price.
GNLW363 decanter centrifuge stock for sale
Main application of GNLW363 stock for sale decanter centrifuge:
Different solid or particle have different density and flow speed, Drilling Mud decanter centrifuge adopts centrifugal force to separate solids / particles out of drilling fluid. Drilling mud decanter centrifuge also can separate particles with different size and density.
Drilling fluids enter the bowl through the inlet tube. It is accelerated smoothly by an inlet rotor. The generated drilling mud decanter centrifuge forces make the solids collected on the wall of the bowl. The conveyor and the bowl rotate in the same direction, but at different speeds, which caused a differential speed, and enable the solids moving towards the conical end of the bowl for removal.
customized decanter centrifuge for drilling cutting separation
Why choose GN brand decanter centrifuge
1) GN is the only 1 API certified solids control company in China, who can make both solids control and waste management equipment.
2) GN can offer decanter centrifuge with international standard, but price much more competitive.
3) GN can offer centrifuge with users’ color, company logo and name plate. GN is OEM for many famous mud service companies worldwide.
4) GN have decanter centrifuge in stock, They can offer centrifuge in very short time with reasonable price.
For any more information on GN decanter centrifuge, contact GN group with the nearest office to you.
GN Solids Control is a top manufacturer for high quality replacement shaker screen.
GN advanced replacement shaker screen model as following:
1)Replacement screen for Derrick 503 / 504 shaker
2) Replacement screen for Derrick 48-30 shaker
3) Replacement screen for Swaco Mongoose shaker(GN linear motion shaker model GNZS594 utilize the same screen with Mongoose shaker)
4) Replacement screen for NOV Brandt Cobra shaker
For customized shaker model, customer only need to offer exact dimension and pictures of both sides.
GN Solids Control have distinct advantages on shaker screen manufacturing:
1). Compared with other shaker screen manufacturer, GN have more understanding on shaker screen and shaker design. GN Solids is the famous shale shaker manufacturer as well as shale shaker screen.
2) GN mainly focus on international market and top domestic market, GN quality making is per international standard, API RP 13 for shaker screen manufacturing.
3) Top material for shale shaker screen: wire cloth for GN made replacement screen have 2 options: SS304 and SS316.
4) The SS316 material wire cloth for GN shaker screen is choose from the same with Derrick original screen
5) Better quality than China brand and much more cost effective than U.S. brand
For more information of GN shaker screen or solids control equipment, you can visit GN website or send inquire GN at sales@gnsolidscontrol.com

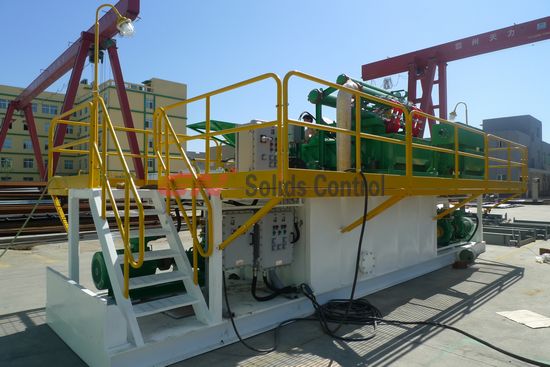

GN have just came back from Australia from a NO DIG drilling show there. GN take a compact 200GPM drilling rig mud system for the show. The mud cleaning system is in stock for sale now.
It is a complete mud cleaning system with a tank, a double deck shaker with mud cleaner, mixing system, electric control system, and tank accessories.
Suitable applications of the GN200 GPM drilling mud system:
