Recently GN Solids Control exported a oil drilling rig mud system for a 1500hp oil rig in Russia, with our partner supplying the mud tanks. GN supplying all the main equipment like shale shaker, mud cleaner, decanter centrifuges, centrifugal pumps.

A normal 1500HP oil drilling rig developed with a 350 t hook load capacity for medium deep wells. Every aspect of rig operation from mobility and deployment to machine and structural design has benefited from a wide array of improvements that maximize safety while minimizing the time for rig-up/down and transport. An integrated hydraulic system is connected to raise the mast and the substructure. When the substructure is in the lowered position, the mast is connected to the drill floor. The mast is raised by two hydraulic cylinders. When the mast is in the vertical position then the hydraulic cylinders are disconnected and retracted. Two telescoping cylinders now lift the substructure into operational height.



The normal mud system (4 mud tanks system 1600bbls) mainly including

DITCH MAGNETS

MUD TANKS: SHAKER TANK (1) ea. 40 L x 8’ W x 8’ High 400 BBL with porch

INTERMEDIATE TANKS: (1) ea.‐40’L x 8’ High x 8’ wide 400 BBL with porch

SUCTION TANK: (1) ea.40 L‐x 8’ft W’ x 8’ High, 400 BBL with porch

RESERVE TANK (1) ea.40 L‐x 8’ft W’ x 8’ High, 400 BBL with porch

TRIP TANKS (1) 80 BBL Capacity With 3”x 4”transfer Pump X 20 hp.

PILL TANK: (1) 80 BBL Capacity

Slug Pit

1) 4 sets of shale shaker, GNZS594E-HB.

This shale shaker is 4 panel shakers with big treating capacity,

2) DESANDER‐DESILTER (1) With 16 x 4” De‐silter Cones and (3) 10”in cone De‐sand 6 x 8 centrifugal pump (2) ea 100 hp. motors

3) 2 sets of decanter centrifuge, GNLW363CG

The centrifuge is high speed centrifuge can reach 3200RPM, and G force 2062@3200RPM.

4) 20 sets of centrifugal pump

Freely contact with GN Solids Control for a total solution.

GN Solids Control deliveried the 9th range of containerized drilling waste management system with winterization to get Russian client and this is a third containerized drilling waste material management system for a identical client in Russia. Seeing that everybody knows, Russia drilling surgery always in very cold weather and want all equipment and mud tank to be working in winter. That’s why we construct many sets of drilling waste management system and also solids control equipment intended for winterization design.

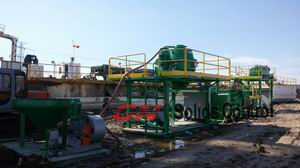

Main Tools For Winterized Drilling Squander Management System
One set of containerized vertical cuttings dry remain inside of 40 feet gift basket, the vertical cuttings dryer can process drilling cuttings 30 – 50 loads per hour by 0. twenty five to 0. 5 millimeters mesh bracket. The revolving speed is 900RPM with drying efficiency make essential oil content bellow 5 pct. The oil tank capability is 48 liters, the oxygen knife installed to help stay away from screen block especially by means of water base drilling cuttings.
Three sets of mess conveyor installed, 2 units of the screw conveyor will likely be working to feed vertical cuttings dryer and the last a single for delivery the shop drilling cuttings after up and down cuttings dryer.

Two value packs of decanter centrifuge fitted, one set install VFD control panel for modify centrifuge speed from zero to 3200 RPM and also the other one is fixed velocity centrifuge on 3200 RPM. the 2 sets of decanter centrifuge installed on solids control mud tank and the centrifuge will be working to recycling going mud that out of straight cuttings dryer.
Three range of screw pump, one of them will likely be working for flushing dryer liquids outlet and the other two will be working for feeding decanter centrifuge.
All the above drilling waste management equipment place in a container and the burial container sit on the tank skid and the skid with a include installed for winterized design and style.

Related Posts

• Mud pit drill cuttings management system for oil field drilling
• G GN cuttings solidification unit delivery to N . Africa
• GN drilling waste manage System with regard to Middle East
• GN Drill Cuttings Solidification System for African Client

GN Solids Control deliveried one set of mud mixing system which is work with a mud vegetable in Caribbean. GN Solids already have several clients intended for solids control equipment or maybe related equipment or mud tanks from Caribbean water and this client is already experience of GN Solids for more than four years before place order to get mud mixing system. Our factory test already passed just before delivery to sea dock and realeased delivery with last week.

Main EquipmentsOf the actual Mud Mixing System

You can find one set of two panel shale shaker for remove solids in the drilling mud to get first phase cleaning. The particular GN shale shaker almost all wedge type installation intended for fast replacement and plus 2 degree for minuscule shale shaker deck angel, -1 to +5 qualification deck angel for several panel shale shaker. Shale Shaker screen is stainless substance for screen mesh to help you screen working better.

A pair of sets of high speed decanter centrifuge to remove the very good solids after shaker patio separation above 2 instructions 5 micron at 3200 RPM speed. It is stainless steel material for centrifuge jar and rotating part and another set of submersible slurry pump used to feed drilling mud into centrifuge inlet. Often the bowl size 360 milimetre diameter and 1270 milimeter bowl length for fifty cubic meters per hour the treatment of capacity.

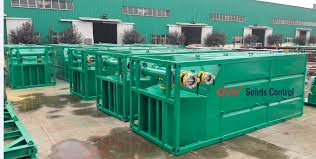

4 sets involving 40 feet container sizing mud tank for mud storage with mud agitators, control panel, handrail along with walk way, etc . The particular mud tank can be personalized as per clients request, typically the 40 feet or twenty feet size just for move convenient in side from the country. Some client buy mud tank with skid mounted which can be pull regarding moving mud tank to put it briefly distance.

Mud gun is definitely an essential part for going mud tanks, it generally works together with mud agitator/ dirt mixer. The 3 main features including:
(1) Mixing, prevent the shades from precipitate, the necessary operating pressure is provided by the blending pump or mud pump motor, sometimes it works together with mud whisk, for example , for mud combining tank, mud storage container; sometimes it works separately if you find no enough place to use a mud agitator.

(2) Transferring, the actual mud gun line was created inside the mud tanks as well as connect with each tank in order to transfer the drilling liquids, for example , it can work as an account balance pipe between 2 aquariums to keep the mud degree balanced.
(3) Cleaning: If linked to clear water pump, it may be used as mud container cleaning line after going is finished, so you do not need to purchase a separate jet water device, with the GN unique dirt tank bottom design( having a 5 degree slant), the actual deposits solids on the container bottom will be washed aside with sand washing slot, and the operator can use unique tools to take the fine sand away.

GN solids control mud gun is with three nozzles and can work with six. 4Mpa for oil and gas drilling, and one 0 Mpa for HARD DRIVE & CBM drilling. We now have 2 types mud weapon, one type is rotatable mud gun which can turn with 360°, the other kind is fixed. Also we offer 2 sizes, 2 ” diameter and 3 ” diameter. The mud weapon length is customized with assorted size mud tanks, we are going to ask the client to provide required information before order.
Usually GN mud gun is made from carbon steel, for unique requirement of brine water or even corrosive mud, we can offer stainless steel material for choice. Welcome to inquiry GN solids America for more info.

Related Posts

• Mud Tank Design In The Drilling Site
• GN Solids Control Equipment for India
• Suitable Mud Gun for Solids Control System
• Mud gun types in the mud system

For the mining, GN have made a few customised layout systems, the first one is for Poultry, the customer co-design the system along with GN; then for the coring ming project, we style and design a very small system to get diamond drilling; then some decanter centrifuge with different layout for mining or prospecting water; now another customized system for Philippine mining or prospecting project.
This system contains a shale shaker, two centrifuges. The problems delivered to us is: deep subway, have mining water, having mixtures, different particles, which will destroys the pump which usually keep pumping the lakes and rivers out to keep it able to perform there. The pump is created in German, good quality, but expensive, we want to keep it within good condition, and not easy to get repalcement parts. To sum up, we need another technique to make the pump running properly.
Then we tried a variety of choices, to keep it below ground, or keep it along with the land. To only start using a centrifuge, or use several centrifuges. And questions continually come like do we need shaker, do we need desnader and many others.

With the professional help from clients’ engineer, we finally what is design, and also modify this current operation flow of the mining or prospecting water. Then finally detox the singing water, and then transport to the surface. Considering that the purpose is not for consuming, so do not try.

Furthermore in the mud recycling system, it contains 2 Nemo pump, which is manufactured by German Netsch.

Specifications connected with decanter centrifuge
we have VFD cp to achieve stepless bowl rate adjustment to enhance mud treatment method performance
we use De dos niveles stainless steel SS2205 for centrifuge casting to improve bowl sense of balance, centrifuge balance, as well as progress performance on corrosion weight.
We use Tungsten carbide tiles protecting the twist conveyor impellers to enhance the particular performance when treating large mud.
When the system appear the site, GN solids control engineers should go to the site for the first time having and also operator training. To be sure all goes well and the right way.

Related Posts

• GN Mud Recycling System regarding Asian Client
• Chemical substance enhancing centrifuge system intended for oily sludge

• GN Solids Control drilling mud system shipping to Europe
• Choose a Suitable Shale Shaker for Your Jobsite

GN Solids Control mud recycling systems are widespread in the world. Mud systems may be used in oil and gas area in addition to HDD, TBM Drilling, CBM Drilling or Water Very well Drilling. Last year, GN offered two sets of high construction mud recycling systems to get no dig drilling to 1 Asian client. Just some days and nights before, GN Solids control provided another set soil systems for one client coming from Philippine.
With a compact framework, this system is mainly used to distinct dirty mud can get clean up water. By using this set, each of our client can get water wherever possible, and solids can be individual out for further treating. The item mainly includes the following accessories:
1 . GN shale shaker GNZS594E-HB, 1 set
The dealing with capacity of this shaker will be 600 GPM. By using world renowned vibration motors like German OLI or USA Charlie, GN shaker can work to get a quite long time without cracked.
After the mud is shipped to the shaker from the serving box, the 4 portions shaker screens will distinct out most the solid waste. GN using good quality cable mesh to manufacture individuals shaker screens in order to keep going longer while also has a pretty excellent separating performance. GN likewise manufactures some other shaker window screens to replacement well-known shaker screens, such as Mongoose, Brant, Derrick etc .

2 . GN decanter centrifuge GNLW363CG-VFD, 2 units
These 2 sets centrifuges both have one 14 inches rotating bowl. Running rate can be changed easily by employing touch screen when using the VFD manage box. GN VFD package is using ABB or Siemens electrical components for long life use. Different explosion proof cardboard boxes can be customized based on customers’ demands, such as IEC, ATEX.
The first variable speed centrifuge is rotating at a decrease speed compared with the second just one. It mainly used to separate out and about those solids with a greater diameter. On the other side, the second centrifuge is used to separate finer debris at a higher speed.
3. GN Screw Pump, 2 pieces
These 2 screw pumping systems are used to feed the decanter centrifuge without agitating the soil too much. GN is using well-known positive displacement pumps Netzsch.
4. GN Mud tank
All the above equipments tend to be fixed on one mud aquarium.

Related Posts

• GN High Quality And Cost Effective Mud Recycling System
• mud recycling system
• GN 500GPM series High Standard Mud Recycling System
• GN HDD mud recycling system shipping to Africa

The drilling operator might know that after several times reuse of the drilling mud, there will accumulate more and more ultra fine solids in the mud that cannot be separated out with physical method even by using high speed decanter centrifuge unit.
The accumulated solids will rise up the mud specific gravity that will greatly affect the mud performance. While, in order to keep the normal density of the mud, under this circumstance, the flocculation no doubt is the most popular method to be used.

The flocculation process is produced in a type of machine called polymer mixing unit. This unit is used to mix the polymer that will be fed into the centrifuge to gather the fine solids in the mud. This polymer mixing unit is always connected with the centrifuge unit in the solids control system. After the separation by primary solids control equipment like shale shaker and cyclone unit, most of the solids larger than 5 microns could be removed out. The centrifuge unit plays an important role in this flocculation process. Sometimes, this centrifuge is called dewatering centrifuge.
GN’s polymer mixing unit is designed as 3 compartments mixing tank with automatic dosing conveyor and agitating device. Dry chemicals and water are fed into the first compartment for mixing, and then overflow into the second compartment for maturing process. The third compartment is used to store the solutions waiting for use.

The material of this machine body is PP. At each compartment, there is installed one automatic agitator with stainless steel made agitating shaft and impeller. The chemicals feed hopper is also made of SS304.

In order to realize the continuously mixing, the tank compartments are installed with liquid level control device. The mixing, maturing and storing process continuously transfer with low labor cost. The PLC design makes the operator adjust the solution concentration as per request, high automatic degree, and no need human watch over.
GN could provide the polymer mixing unit with dewatering centrifuge containerized for weather proof. For more information, welcome click to see GN Dewatering System.

GN Solids Control LTD and GN Solids America LLC’s VFD (variable speed drive) decanter centrifuge it allows oil well drilling service contractors or drilling mud service contractor company to perform the barite recovery, fine/ ultra fine solids filtrations and water-removal centrifuge. GN Solids Control LTD has the decanter centrifuge from 9 inch bowl to 22 inch bowl available for different solids-removal applications. GN Solid Control’s decanter centrifuge bowl length and diameter ratio is over 3 times and it gives the best result for the drilling fluids cleaning.

Purposely to make drilling fluid decanter centrifuge parameter to perform adjustment according to the drilling stratum, depth of the oil well and drilling technology evolved through times, the development of the variable-control  speed and the closed-looped solids control system which basic on the main electric current to be as sending the control signal.

The oil-field application shows that drilling fluid decanter centrifuge matched frequency control speed closed-loop control system can use the different drilling fluid viscosity and density according to technology used and oil field’s physical condition.

Using decanter centrifuge main electric current signal, it automatic adjust the feeding pump displacement and high speed centrifuge actual parameter to realize drilling fluid centrifuge closed-loop control, ensure the de-slugging quantity and decanter centrifuge handing capacity always be in the condition at the fullest.

Drilling fluid decanter centrifuge frequency control closed-loop control system parameter can be automatic adjustment and realize self-awareness, also can efficiency avoid decanter centrifuge overload the fluid feeding and blocking.  It can improve the reliability of centrifuge operation; reduce the uncertain operation surprise because of sudden failure.

By using frequency control speed closed-loop centrifuge can automatic and manual adjust decanter centrifuge’s rotary speed, make it can be as the middle speed centrifuge(1000-2000 rpm), also can as the high speed centrifuge( 2000-3000 rpm) to achieve efficiency control drilling fluid solid phase content and improve drilling fluid solid control condition.



Related Posts

• To Keep More Stock with More Competitive Price
• GN Solids Control System

Shale shaker is a most popular equipment uses in drilling mud primary solids control system. According to different processing result and mud condition, the operator may choose the shale shakers with different vibration motions. Nowadays, the most often heard of the shale shaker vibration motion are the linear motion and elliptical motion. GN now has a new development shaker could realize the vibration motion changing during running between linear motion and progressive elliptical motion.

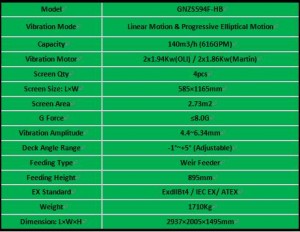

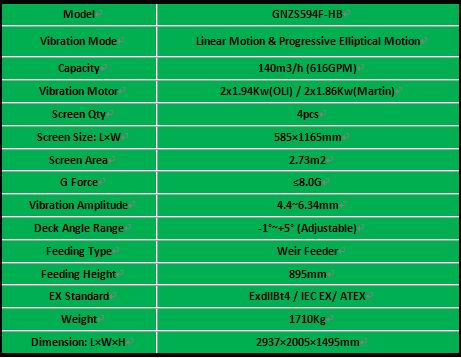

Below the Dual Vibration Motion Shale Shaker Parameters:

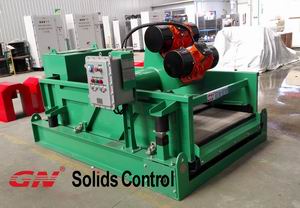

GN’s dual motion shale shaker has 2 units vibrators, comparing with other brand dual motion shaker with 3 units vibrators, GN’s shaker is more cost competitive. The changing of the vibration is realized by operation on the control panel, no need to adjust the eccentric block of the vibration motors.
