Mud Cleaner
Mud Cleaner
Categories:
Solids Control.DESCRIPTION
-

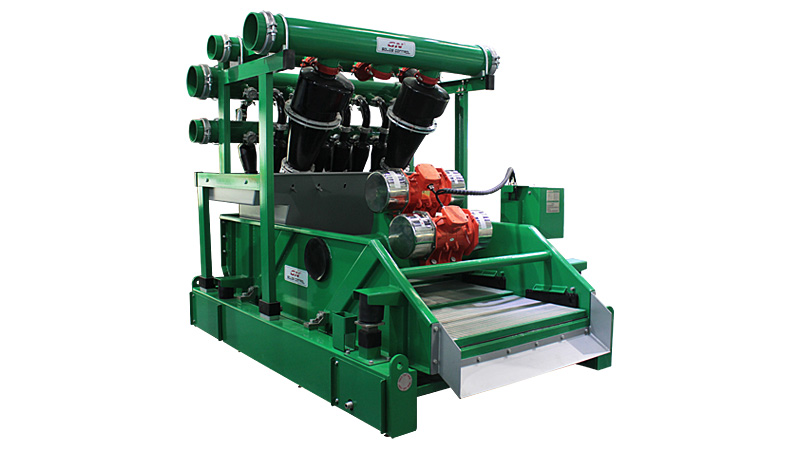

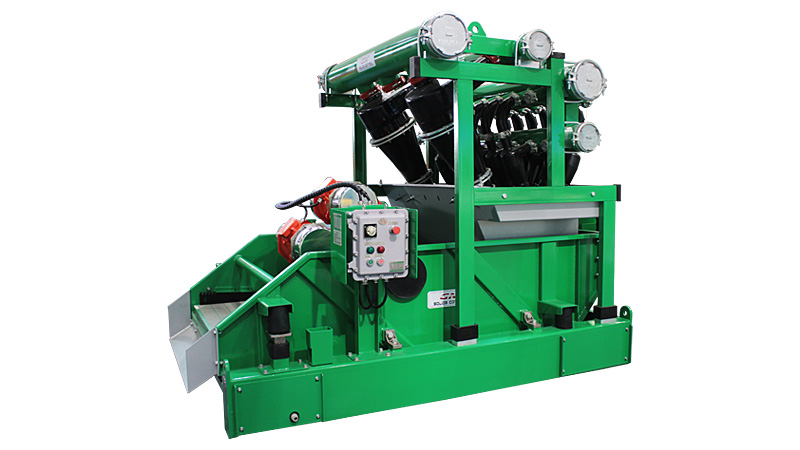

GNZJ mud cleaner is a normal model of our company,we can design customized cost-effective mud Cleaner for customers special needs.Our mud cleaner can meet almost all needs for oil & gas well drilling fluids treatment system and HDD Mud Recycling System.
GNZJ Mud Cleaner Features & Benefits
- Desander & Desilter & Shale Shaker 3 in one unit mud cleaner for compact footprint.
- Polyurethane Material hydrocyclone for long life
- Removable hydrocyclone assembly for adjust to be a shale shaker.
- Patent shaker deck angle adjustable while working, mechanical deck angle adjustment with reliable performance.
- Patent tighten rubber sealing for mud cleaner shaker deck and screen for fine screen
- Shaker bottom deck made from Stainless Steel for long service life.
- Heat treatment on complete shaker deck for High G force operation.
- Pretensioned Shaker screen for fast screen replacement.
- Famous Brand Vibration Motors : IEC Ex, ATEX and UL Certified mud cleaner
Mud Cleaner is the second class and the third class solids control equipment which is the newest type to treat the drilling fluid. GN drilling mud cleaner are combined from Desander, Desilterand an Underflow Screen, at the same time Mud cleaner has the higher cleaning function compared with separated desander and desilter. In addition to the reasonable design process, it equals another shale shaker. GN mud cleaner structure is compact, it occupy small space and the function is powerful. Mud cleaner is the ideal device of the second class and the third class solid control to treat the drilling mud.
GNZJ Linear Motion Mud Cleaner Technical Parameter
Model GNZJ594J-S1S8NJ GNZJ594J-S2S12NJ GNZJ594J-S3S16NJ Capacity(m³/h) 120(528GPM) 240(1056GPM) 360(1584GPM) Desander Size(Inch) 10 10 10 Desander Qty(PCS) 1 2 3 Desilter Size(Inch) 4 4 4 Desilter Qty(PCS) 8 12 16 Working Pressure(Mpa) 0.2~0.4 0.2~0.4 0.2~0.4 Inlet Size (Inch) 6 Outlet Size (Inch) 8 Bottom Shaker Specs. Shaker Model GNZS594J GNZJ594J GNZJ594J Vibration Mode Linear Motion Motor(Kw) 2×1.72 Screen Qty(Pcs) 4 4 4 Screen Size: (mm) 585×1165 585×1165 585×1165 Screen Area(m2) 2.73 2.73 2.73 Adjust G Force ≤7.5G ≤7.5G ≤7.5G Vibration Amplitude(mm) 5-7mm 5-7mm 5-7mm Deck Angle Range -1~+5° EX Standard ExdIIBT4/IECEX/ATEX Weight 1930 2285 2378 Dimension(mm) 2462x2042x2147 2707×2042×2147 2707×2042×2147 The above specification and parameters for reference only. Drilling mud Cleaners for drilling fluids solids control:
Drillingmud cleaner is also called Desander and Desilter assembly,which is the combination of desander,desilter and an underflow screen.Namely,mud cleaners consists of a two-stage separation process using a combination of hydrocyclones mounted over a shale shaker to operate as a single unit. Designed to handle the entire circulating volume, Drilling cuttings cleaners are effective on both weighted and unweighted drilling-fluid systems in removing and drying solids while retaining the expensive liquid. The hydrocyclones(desanders and desilters) make the primary separation with underflow directed onto the shaker’s vibrating screen. Used correctly, the drilling mud cleaner lower both drilling-fluid and disposal costs.
In oilfield solids control,drilling mud cleaners are very efficient for oil gas well drilling mud purification system.Mud Cleaners are one of the important equipments for solids liqiud separation system.
We are an exporter of dilling mud cleaner for Indian, Russian,middle east.etc.Oilfield Company of the United States and Century Int'l Oilfield Equipment LLC of the United Arab Emirates etc. choose us as dilling mud cleaner supplier.Our factory and company are Quality Management System ISO 9001-2000 certified.GN Solids Control operate waste mud management international sales,service,manufacturing,distribution serivce.Buy dilling mud cleaners from China manufacturer,good quality,best price.your best choice of dilling mud cleanerMore info about GN Drilling Mud Cleaner
