High G shale shaker (H-G) is a kind of dryer machine used for drilling cuttings waste management.Vertical G cuttings dryer (V-G) is anther dryer machine for drilling cuttings waste management.

Many customer wondering the difference of the 2 kinds of dryr and do not know how to choose the suitable one.

High G shale shaker (H-G) VS Vertical G cuttings dryer (V-G)

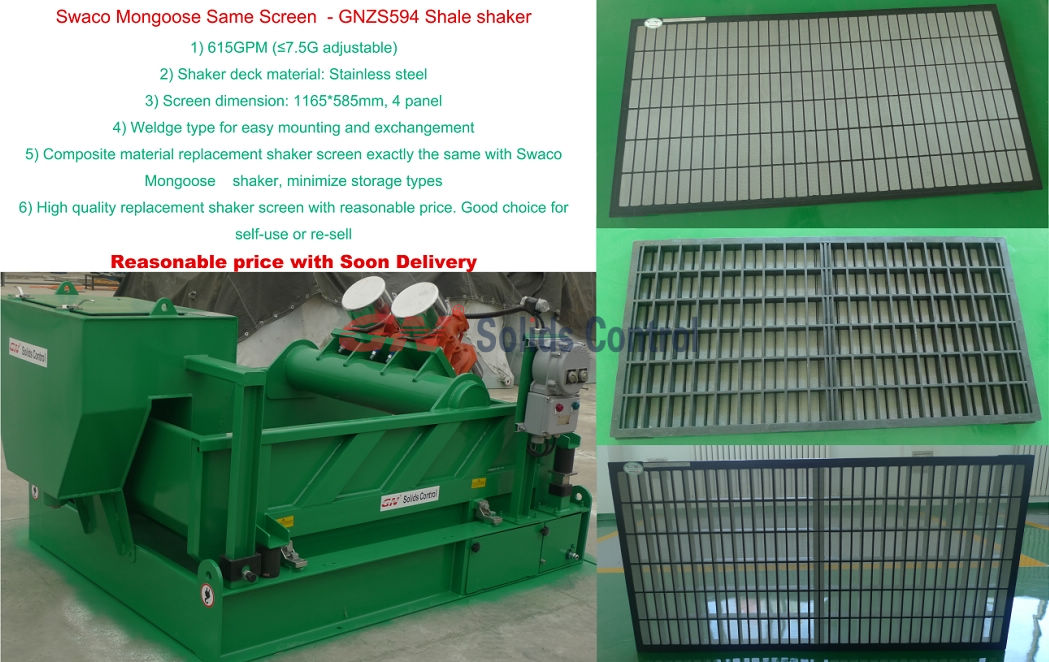

GNZS594 High G shaker dryer

GNZS594 High G shaker dryer

1) Price of Vertical G cuttings dryer (V-G) is much more higher than High G shale shaker (H-G)

2) Their application field is different. High G shale shaker (H-G) is mainly used to treat water based mud drilling cuttings. While Vertical G cuttings dryer (V-G) mainly used to treat oil based mud drilling cuttings

3) High G shale shaker (H-G) can be used to separate oil based mud drilling cuttings, while Vertical G cuttings dryer (V-G) cannot used to treat water based mud drilling cuttings

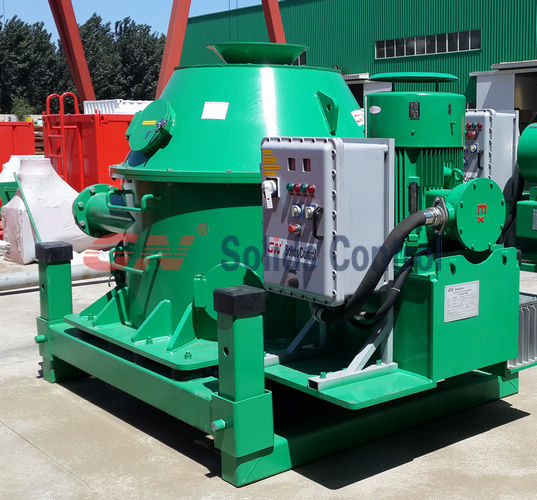

Vertical G Cuttings Dryer

Vertical G Cuttings Dryer

Difference of High G shale shaker (H-G) & Vertical G cuttings dryer (V-G) for oil based mud (OBM)

Both High G shale shaker (H-G) & Vertical G cuttings dryer (V-G) can be used for oil based mud, but there is difference on performance.

High G shale shaker (H-G) can reduce the oil on cuttings (OOC) to 15~20% after treatment. For many customer, it is not dry enough. Other treatment process is necessary. But the Vertical G cuttings dryer (V-G) can reduce the oil on cuttings (OOC) to 3~5%. The discharge from Vertical G cuttings dryer (V-G) can take away directly for road construction or other function. Or Feed to Thermal Desorption Unit for further treatment.

GN Solids Control is the only 1 API certified solids control company who can make both High G shale shaker (H-G) & Vertical G cuttings dryer (V-G) in China. For more information of the dryer machine, contact GN group freely.
