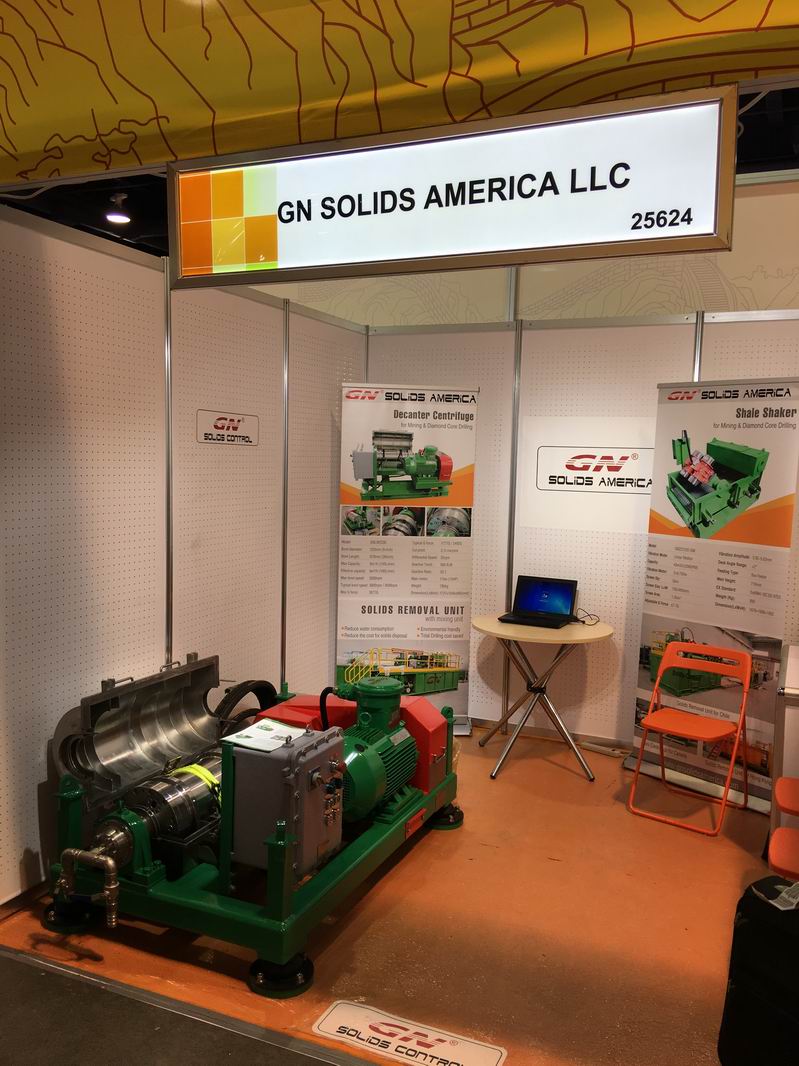

In the just past MinExpo 2016 exhibition for especially for mining industry, GN showed the 9 inch decanter centrifuge there and many visitors came to GN booth showing great interesting to this unit.
9 inch is the smallest size model in GN’s decanter centrifuge production line. GNLW223 is the typical model number of this size, now both the fixed speed and VFD model available. At this time, all GN’s decanter centrifuge is electric driven; however, GN is researching the FHD model that is more preferred as less energy consumption.
GN 9 inch decanter centrifuge unit can run normally at 3800 RPM for long time working condition, while the designed maximum RPM is 5000. GN’s dynamical balance testing instrument can test the decanter centrifuge at actual working speed, even the maximum designed RPM. This ensures the stable working performance.
GNLW223 series decanter centrifuge is mainly used for small capacity solids removal project. Diamond core drilling is a typical industry that will use this type decanter centrifuge. With a high working speed, the centrifuge unit would remove the ultra fine solids like less than 5 microns from the drilling fluids. Ceramic tiles are inlayed for protection of the screw propeller, which extends the working lifetime. For the customer who prefers the FHD model, GN also provides only the mechanical part like bowl assembly and bearing seat, customer could equip the hydraulic driving system and electric control system locally.
Some mining operators would ask put a shaker unit before the decanter centrifuge, thus the coarse solids could be removed firstly. Then the slurry with fine solids will be fed into the centrifuge. The function of the shaker is to remove most of the large size solids, which will greatly reduce the working load of the centrifuge. It is also a protection on the centrifuge unit.
Now GN already developed the compact solids removal unit including mini shaker and 9 inch decanter centrifuge. This system also has mixing system for adding bentonite into the fluids. Its compact structure make it could be helicoptered to lift to a remote area for working.
