GNLW553VFD centrifuge is designed and made by China work top manufacturer- GN Solids Control. They are specialist for mud solids control and drilling waste management. The model GNLW553VFD centrifuge is now in storage for sale now.

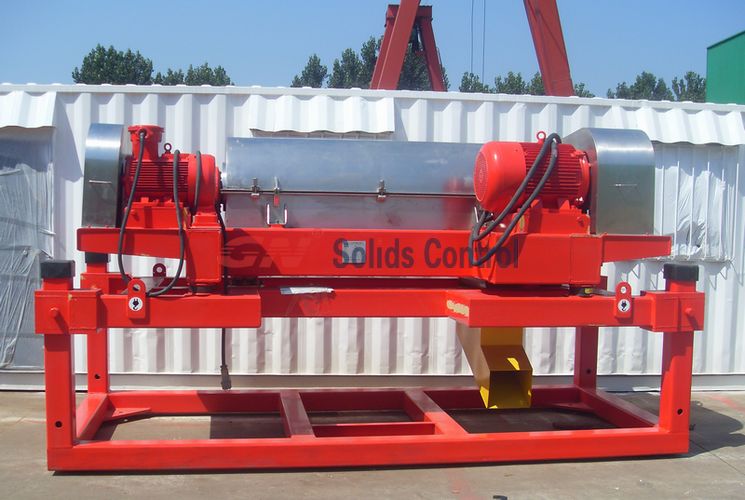

GN big bowl centrifuge GNLW553VFD is specially designed with big bowl for big capacity. It is variable speed centrifuge. Design bowl speed (max) of GNLW553VFD centrifuge is 3000RPM. With the VFD control panel, normal bowl speed can be adjust from 0~2500rpm. GNLW553 big bowl centrifuge

Advantages of GNLW553VFD decanter centrifuge:

Max. bowl speed: 3000rpm

Max. capacity: 500GPM

Variable speed adjustable from 0~2500rpm (typical)

Big bowl dimension: 550mm dia. with 1800mn in length

Big gear box torque (max.): 12000N.m

Positive pressurized VFD control panel with 3 VFD: for main drive, back drive and feeding pump

Main body material: Stainless steel 316L

Screw Protection: Tungsten alloy tile

Solids Discharge Port: Interchangeable tungsten carton alloy ring

Manufacturing standard: API & ISObowl big capacity centrifuge

Crossing tee is specially design and made by GN Solids per its huge experience. The crossing tee is for mud inlet, pure water cleaning system for bowl, pure water cleaning system for bowl screw and a by-pass in case overload.

For service international customers better, GN Solids now have many equipment in stock for soon delivery. GNLW553VFD big bowl centrifuge with big capacity is also in stock. Customer only need to wait 2~3 weeks for prepare motor and VFD control panel with the suitable voltage and hz. For more information of GNLW553VFDin stock centrifuge, contact GN group.
