April 22 2011

Now we are glad to march to the piling desanding plants. GN 50 is our new patent desanding plant for the piling slurry treatment. Now we exported 1 unit to Pakistan, which will be used with a rotary drilling rig.

Main Features and Advantages of GN 50 Desanding Plant
1. Compact design
2. Simple but rugged
3. All material are top brandts
As we always do in oil field, hdd, and other fields. GN top quality linear motion shaker, and shaker screens, high efficiency and top quality slurry pump.

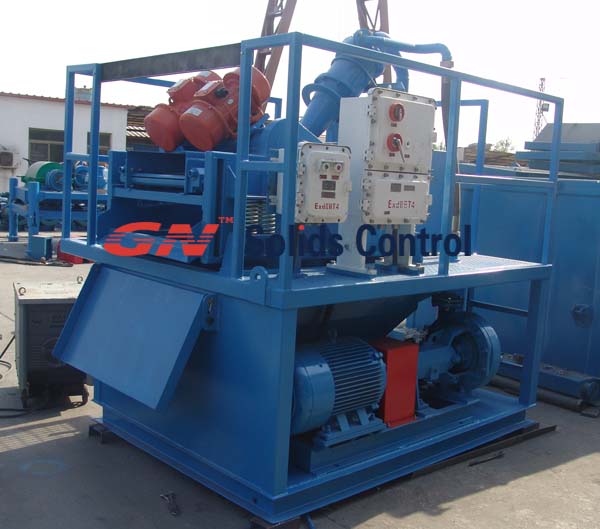

 piling desanding plant

Technique Details of GN 50  Desanding Plant

Model GN50
Capacity (m3/h) 50
Centrifugal Pump (kw)       30
Cyclones 1*8"
Cut Point (mm) 0.050
Demension 2.4m*2.2m*2m
Weight (kg) 2500

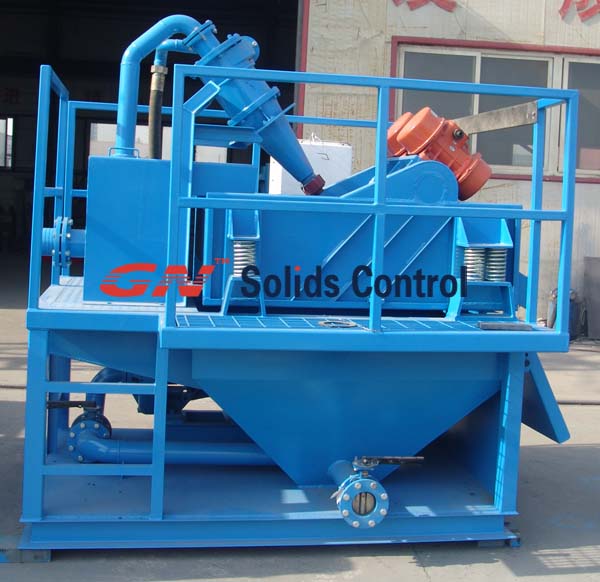

 piling desanding plant



Application of GN 50 Desanding Plant

The compact desanding plants for separating solids and liquids of:
Injection- and anchor drilling
Well drilling
Deep drilling
Microtunneling
Aggregate processing
Mining Industry

piling desanding plant

Now GN can also supply GN 100 (treating capacity 100 CBM)or customized desanding plants.
