Last week, GN 1000GPM dredging slurry separation system has been delivered to worksite for customer's project starting celebration. It is GN's first unit standard configration system for dredging slurry separation which showed that GN has made herself getting into a further level for river and lake sludge cleaning up .

GN 1000 GPM Dredging Slurry Separation System at Worksite

Main Equipments for 1000GPM Dredging Slurry Separation system

1. GNZS703 Shale shaker - 2 Units
2. GNZJ703-2S De-sander - 1 Unit
3. GNSB6x5-13 Sand Pump - 2 Units
4. Mud tank and accessories

GN Shaker & De-sander for Sludge Cleaning Up

GN Dredging Slurry Separation System working principle

The advantage of GN is Solid Control, that is fully shown at this unit dredging slurry separation system. The basic working principle for sludge cleaning up is remove the solid particles from water. In order to make the discharged slurry more drier, we install the steel plate aperture screen on the shaker and de-sander. The apertures on the screen make it high passing rate for liquid. So that the discharged slurry out from this system could be transported directly for next step dispose.

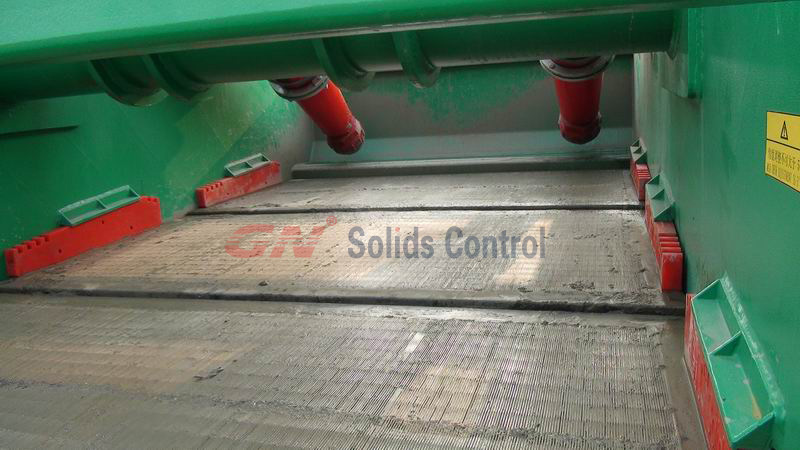

Steel Plate Aperture Screen for Sludge Separation

What this 1000GPM dredging slurry separation system could do is to separate the large solids particles from water. To meet high lever enviroment request, still need adding flocculant  into the water to gather the tiny particles, then separate them by a filter press. More information about GN 1000GPM dredging slurry separation system, welcome contact with GN Solids Control.
