February 15 2012

In 2011,GN have delivered over 10 Complete Solids Control System to Australia for Coal Bed Methan(CBM) & Horizontal Directional Drilling (HDD).With the successful projects and exposure in Australia,it attract many New Zealand customers to approach GN Solids Control for Mud Cleaning System.

The Solids Control System purchased by the New Zealand customer is for XJ750 750HP oil drilling rig.It consists of 4 Mud Tanks.

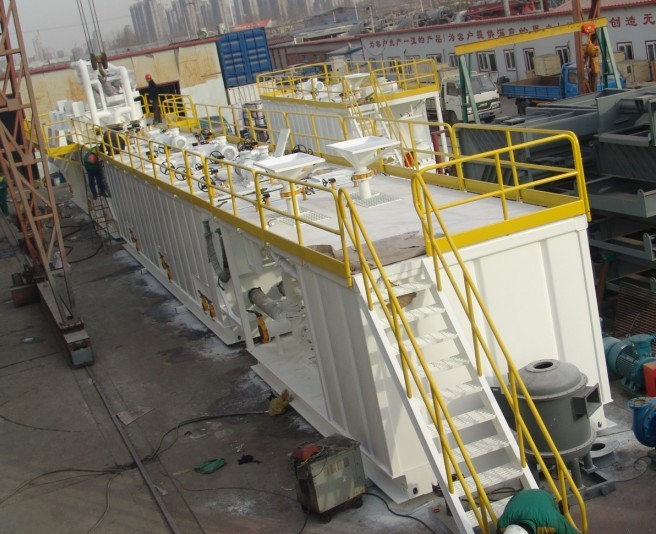

drilling rig solids control

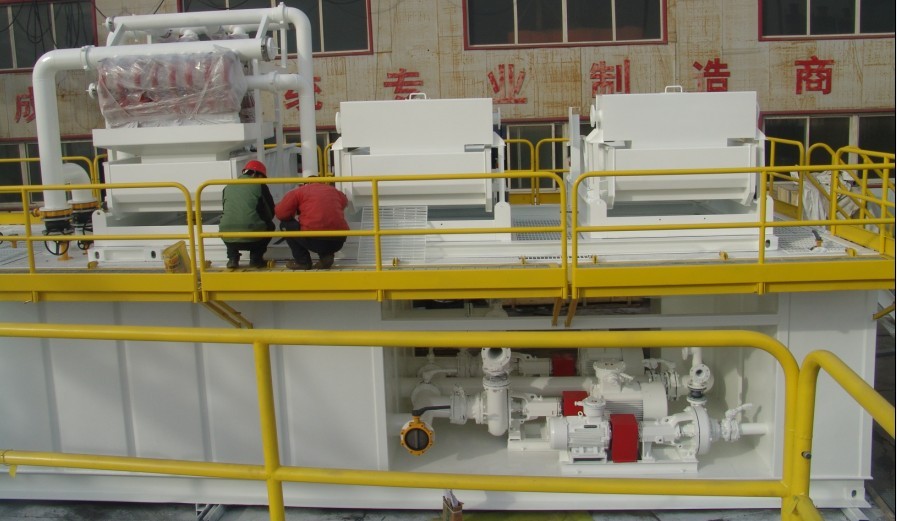

1)Recycling Tank (40feet Container Size) with 2 GNPS703 Shale Shaker,1 GNZJ703 Mud Cleaner with 2x10inch Desander cones,12x4inch Desilter cones,and as well as desander desilter feeding centrifugal pump SB8x6-13(55Kw).And one trip pump for the trip compartment.

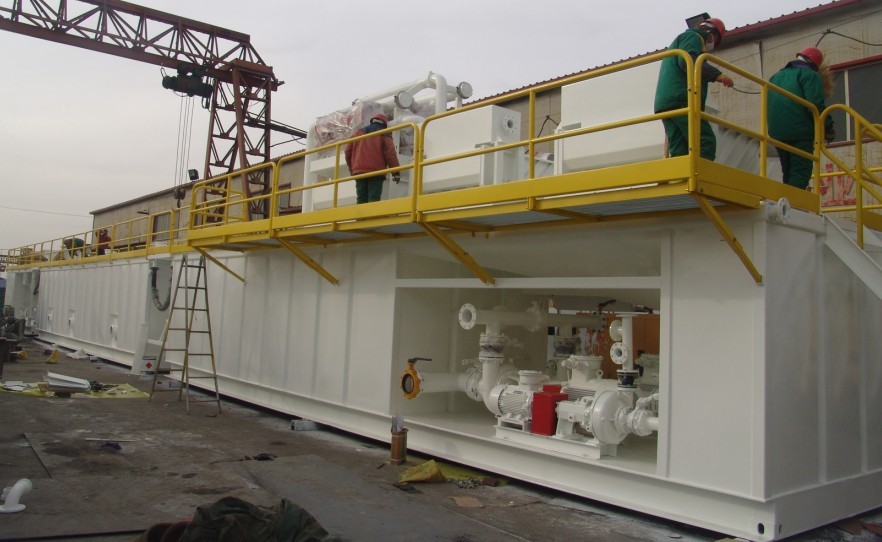

XJ750 Recycling Mud Tank

2)Active Tank(40Feet Container Size) with Mud Agitators and Mud Guns.

Active Tank

3)Mixing Skid(20feet container size) with 2 mud hopper,One SB8x6-13(55KW) Centrifugal Pump and one shear pump.

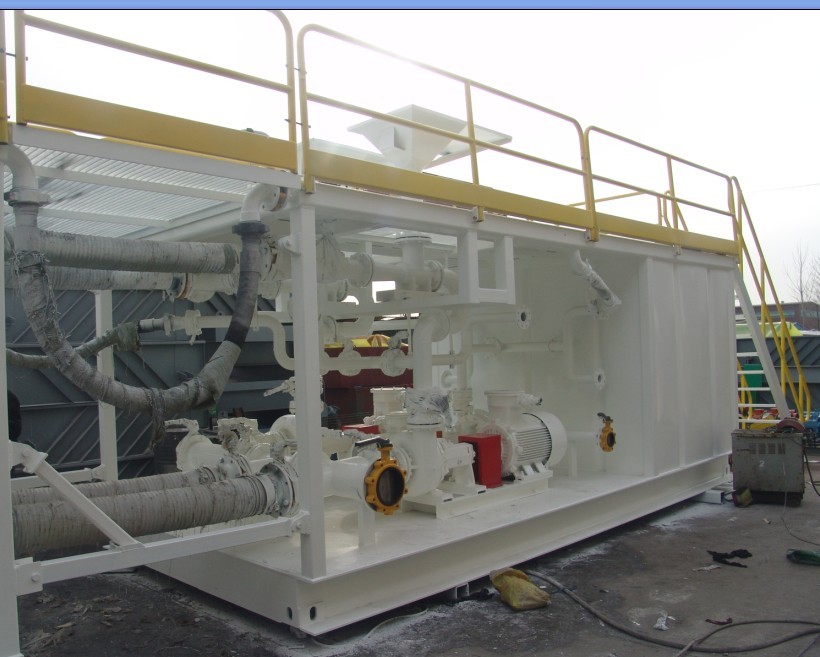

4)Mixing Tank(40feet container size) with one SB8x6-13(55Kw) mixing pump and one mud hopper,completed with mud agitators and mud guns.

GN Beijing new facility is coming soon,at that time the production capacity will increase a lot:
