Though over 60 percent of business is coming from abroad, GN is getting the good reputation and more and more market share in domestic market. GN was founded at the beginning to manufacture the oil rig mud system; hence, a 750HP oil rig mud system will not be a difficulty to GN. This system was made in consideration to both client’s requirements and GN’s unique design features.

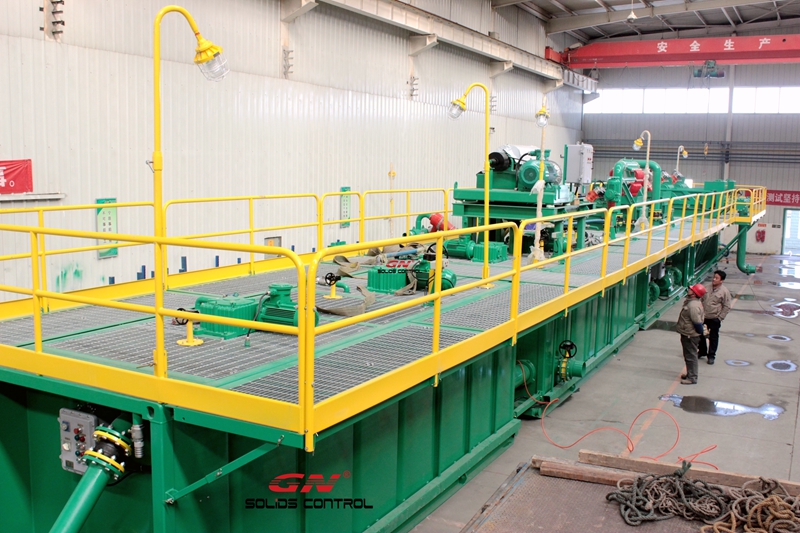

Configuration of Full Solids Control Stages 750HP Rig Mud System

1. This system includes all 4 stages solids control equipment, shale shaker, de-sander, de-silter and decanter centrifuge unit.
2. 2 Units Shale shaker used as the coarse solids separation equipment located on first mud tank. This type shale shaker is fixed with 3 panels screen and the mud feeding inlet on buffer box was pre-opened as per client’s site condition for easy connection. The mud tank under the shale shaker was designed as inclined tank bottom for easy tank cleaning.
3. Both the de-sander and de-silter unit are equipped with under drying shaker. Comparing with the cyclone unit without drying shaker, this type mud cleaner unit could greatly reduce the loss of drilling fluids and make the discharged solids much dryer. In the meanwhile, the under shaker are 2-panel screen model GNZS752. This shaker model is much cost effective than 3-panel screen shaker, however, the performance is also good enough.

4. This 750HP rig mud system was equipped with GN economic configuration 18 inch decanter centrifuge with RPM1800. This centrifuge unit is fed by a submersible slurry pump, and mainly used for drilling fluids barite recovery.
5. Total 4 units 40 feet mud tank involved in this 750HP mud system. All the solids control equipment was installed on the mud tank incompactly to give more space for operator or installation of the mud agitator.
6. This mud system was equipped with an independent skid type jet mud mixer for mud mixing.

Besides 750HP rig mud system, GN is also able to provide mud system for rig of 350HP, 450HP, 550HP, 650HP, 1000HP, 1500HP and 2000HP. Below, we shared several other projects on GN’s oil rig mud system.
