Trenchless Drilling Mud Desander for Domestic HDD company
GN Solids Control has rich experience on designing and building mud recycling systems. GN Solids Control has high configuration mud recycling system and desander unit that suits different customer demands.

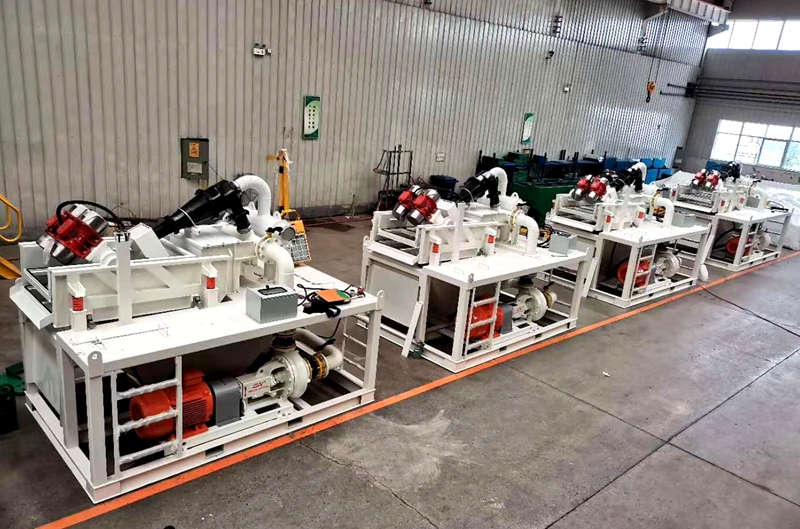

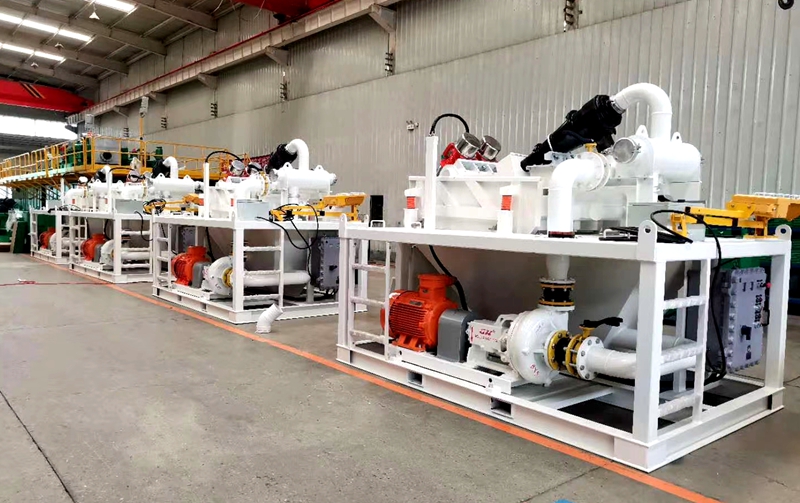

GN Solids Control shipped 4 sets of Trenchless Drilling Mud Desander to a domestic HDD contractor last month. As one of the leading manufacturers, GN Solids Control made Mud Desander Unit is in compact structure, easy to move, convenient to use in narrow working site to purify drilling mud and eliminate solids. GN Mud Recycling System is a complete mud treating system with mud storage and mixing function. While for the GN Mud Desander Unit, it can be provided an extra mixing tank by customer.
GN Solids Control provides different models of Mud Desander Unit, classfied by flow rate, GN Desander Unit includes GNMS200-D, GNMS-500D and GNMS-1000D which corresponds to 200 GPM, 500 GPM and 1000 GPM separately. Besides used for Trenchless HDD project, GN Mud Desander Unit can be also used for Bored Pile Project, Micro TBM Drilling, Diamond Drilling and Water Well Drilling etc.
These 4 sets are GNMS-500D, equipped with one 10 inch cyclone to eliminate solids larger than 40 microns. Vibration G force is less than 7.1 G and adjustable. By using a double deck shaker, upper screen area is 0.875 m2 and bottom screen area is 1.35 m2, treating capacity is 500 GPM.
All shaker screens are also provided by GN, which can last over 30 days without changing.
One centrifugal pump GNSB5x4C is used to feed the 10 inch cyclone, a light is put on the top of the mud tank to guarantee safe working at night. Total power for this whole machine is 32.11 kw.
GN Solids Control also provides customized mud recycling systems in order to work in different situations. Customized logo and painting can be also provided. Welcome to connect with GN for your mud recycling demands.
