July 26 2014

GN Solids Control just shipped two mud recycling unit to India for Vermeer Maxi HDD rig. One is the most popular GNMS 500 GPM mud recycling unit, the other is the GNMS 350 GPM mud recycling unit.

As a leading manufacturer for mud cleaning equipments, the packaged HDD mud recycling unit is a very important market for GN Solids Control. GN Solids Control offers completed line of mud recycling unit for the popular brand HDD rigs like Vermeer, Germany brand TRACTO-TECHNIK (TT Group).The division company of TT Group: TT Asia Pacific is GN Solids Control products distributor in Australia market.

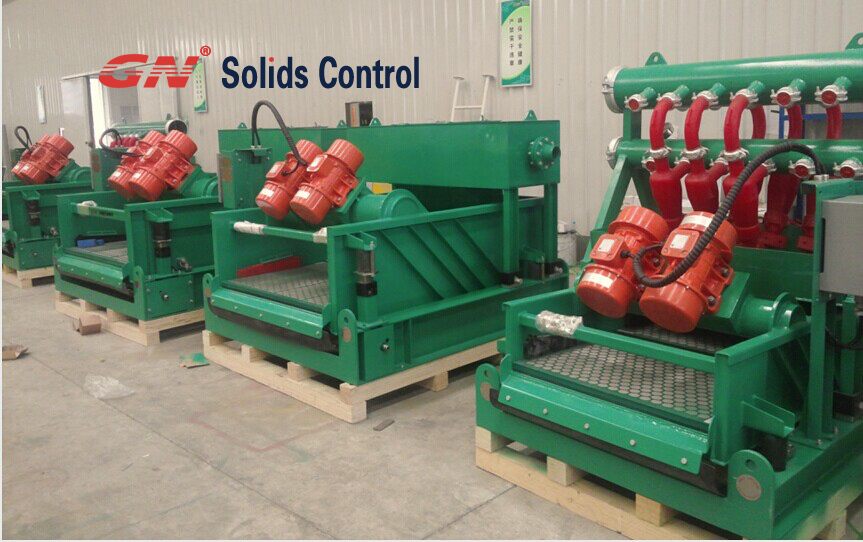

Mud Cleaning Equiment Vermeer India

GNMS 500 GPM Mud Recycling Unit

  •  One unit of GNZS703E-DZ top feeder shale shaker with Linear motion.
  • One Unit of GNZJ703E-8N Desilter cleaner with 8 desilter cones and  bottom GNZS703E shale shaker with screen area over 2.6 Sq meters.
  •  One 40Ft container size mud tank for mounting and locking on to the container trailer fast.
  •  One 50HP desilter feeding centrifugal pump GNSB6x5-12
  • One 50HP Mud mixing pump GNSB6x5-12 with verturi hopper mounting over the 40FT container.
  • Mud agitators, and mud tank attachments included.

500GPM Mud Recycling for Vermeer Maxi HDD

GN completed line of of Mud Recycling Unit includes different sizes : GNMS-150 GPM, GNMS-350 GPM, GNMS-500 GPM, GNMS -800 GPM, GNMS 1000 GPM, GNMS 1500 GPM. GNMS 2000 GPM.GN Mud recycling Unit is available for your following model of Vermeer Horizontal Directional Drilling Rigs.

  • D100x140 Vermeer HDD Rig for pipeline (45 Tons Rig)
  • D220x300 Vermeer HDD Rig for pipeline (110 Tons Rig)
  • D330x500 Vermeer HDD rig for Pipeline (150 Tons Rig)
  • D500x500 Vermeer HDD rig for Pipeline (220 Tons Rig)
  • D750x900 Vermeer HDD rig for pipeline (350Tons Rig)
  • D1000x900 Vermeer HDD rig for pipeline (450 Tons Rig)
  • D1320x900 Vermeer HDD rig for Pipeline (620 Tons Rig)

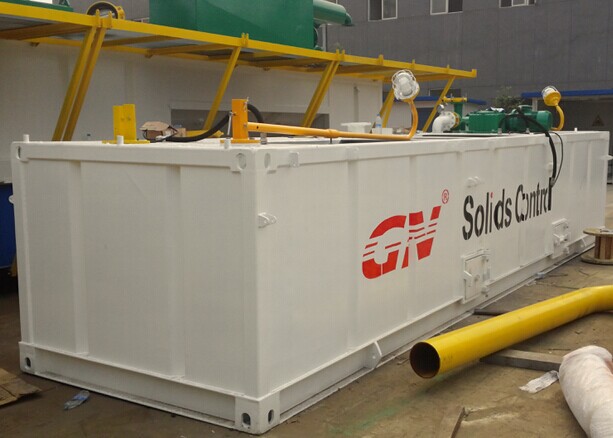

Mud Tank for Vermeer India HDD

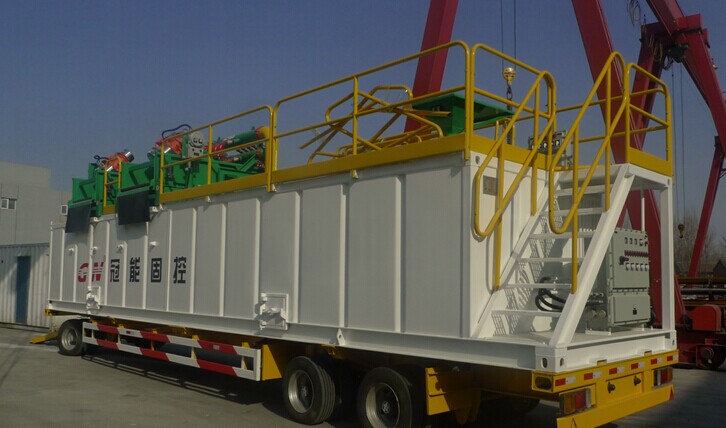

GN mud recycling unit for the maxi Vermeer HDD rig includes Skid mounted mud tank system, Trailer mounted mud recycling system, and hydraulic jack up mud recycling system.

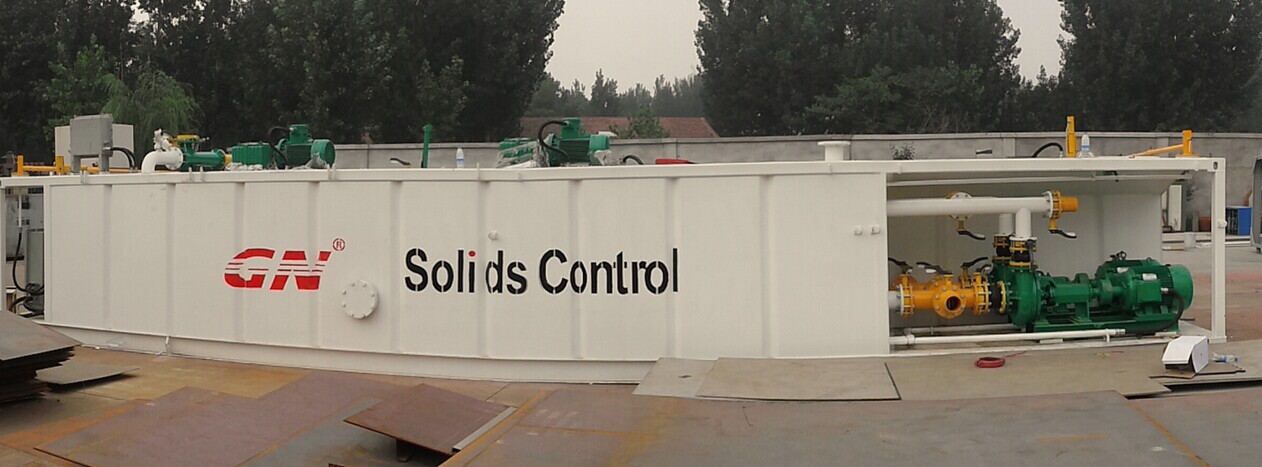

350 GPM Mud Recycling Tank
