Flare Ignition Device

July 31 2009
Details

Flare Ignition Device

GN Solids Control Flare Ignition Device of blown down fuel gas designed and manufactured by our company is a kind of handling arrangement used in blown down natural gas, the tail gas from collecting and distributing station of natural gas and from refinery. And being a kind of security and environmental protection equipment, the flare ignition device can be used to have the blown down harmful gas ignited and burned to prevent the environment and security from being endangered. The flare ignition device, apart from being used in the refinery and gas distribution station, may be matched with Mud Gas Separator. And now, as a matured product it has been extensively used in petroleum drilling engineering.

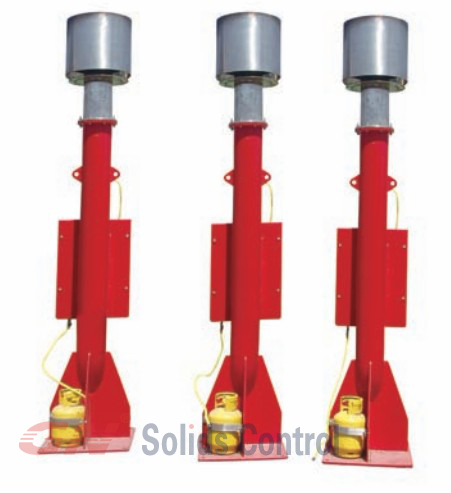

Electronic Flare Ignition Device factory photo

 electronic ignition device

Flare Ignition Device Technical Parameters

Model  GNYD200A GNYD200A-T
Main body diameter 8 Inch
Charging Power 100V-240V~50/60Hz
Ignition Voltage  16Kv
Solar Power N/A Y
Ignition Media LPG
Weight 520Kg 590Kg
Dimension: L×W×H 650×1231×3210mm



Buy Flare Ignition Devicefor solids control system,and work with Mud gas separator.China Flare Ignition Device manufacturer.
