Drilling Mud Mixing Tank and Mixing Pump for Engineering Company
GN Solids Control is a turnkey solids and liquid separation solution provider, with so many years successful experience, GN Solids Control becomes one of the most favourite solids control and drilling waste system brands.
COVID has brought one of the largest economical recessions since World War II. Many countries are still struggling to find the an effective way to control the COVID. Luckily, with the successful launch of vaccine, glad to see more and more countries are building a inside protection wall for civilians.
With the oil price going up, GN Solids Control is receiving more and more inquiries these days. We are expecting that the oil price will be around 65-75 usd per barrel and only vibrate a low amplitude.
This week GN Solids Control finished manufacturing of one drilling mud mixing tank with mixing pumps, they will be delivered to one Engineering company pretty soon.

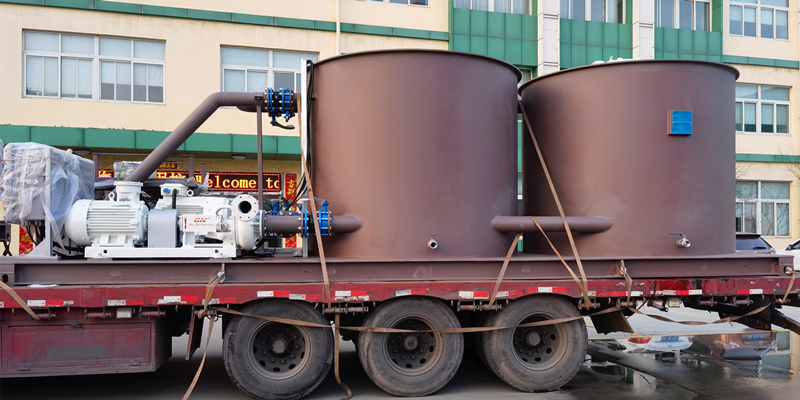

1.GN Drilling Mud Mixing Tank
This drilling mud mixing tank includes 2 small cylindrical tanks. Drilling chemicals will be added in the first tank by using GN Jet Mud Mixing Pump with a mud hopper. 2 parallel mixing pumps are connected with the tank by manual butterfly valves. With the on and off of the butterfly valve, either one of GN jet mixing pumps can be used to add drilling chemicals.
After mixing thoroughly in the first cylinder mud tank, connecting pipes transfer the active drilling mud to the second tank which can be used for drilling rig directly. To keep the drilling mud evenly, each mud tank is fixed with one mud agitator which keeps running.

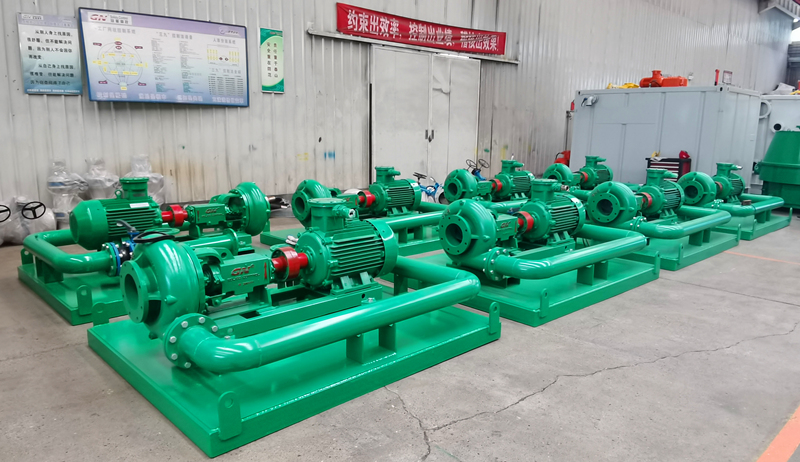

2.GN Jet Mixing Pump
GN jet mixing pump is a centrifugal pump equipped with one Venturi mud hopper. Drilling chemicals is added to the mixing tank through the mud hopper and pumped into the mixing tank afterwards.
Any other customized drilling mud systems can be built by GN Solids Control, welcome to connect with us.
