Drilling Cuttings Dryer and Centrifuge for international drilling company
GN Solids Control is a China based manufacturer, GN has 3 manufacturing plants in China, 1 USA branch company and 1 Russian branch company. GN Solids Control made solids control equipment and drilling waste management systems are widely used accepted by global drilling contractors.
Last week, GN Solids Control finished manufacturing of one set drilling cuttings dryer and one decanter centrifuge for an international drilling company.

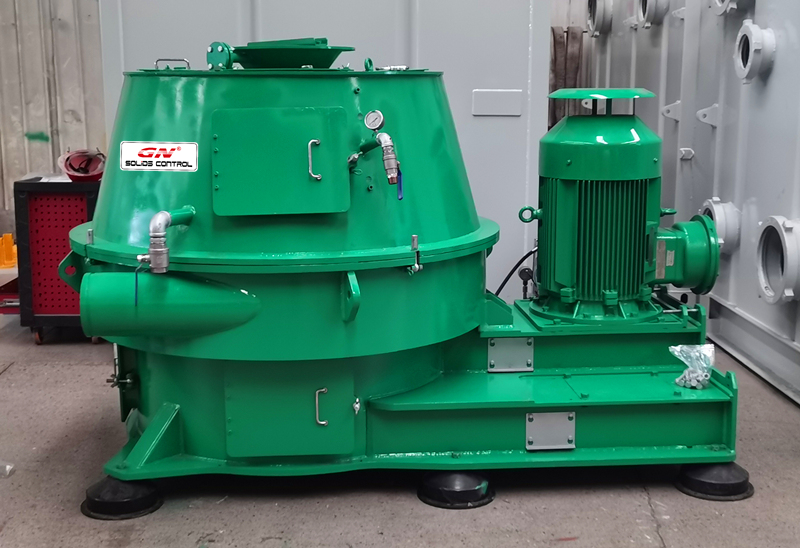

1.GN Drilling Cuttings Dryer
GN Solids Control made drilling cuttings dryer is mainly used to treat oil based cuttings, synthesized base cuttings. After treating by GN drilling cuttings dryer, oil on the final cuttings can be control to less than 5 %.
GN Cuttings Dryer mainly includes screen basket and inside flight, these two main components are running in the same direction by at different speeds. Most of those particles larger than 250 microns can be remove from the cuttings. GN Solids Control made cuttings dryer can be fixed with 3 different sizes of screen baskets, include 250 microns, 350 microns and 500 microns. Flights and screen basket is pretty close, only 1 mm distance.
GN Solids Control has provided hundreds of drilling cuttings dyers to global companies, such as Baker Hughes, Shell etc. GN made cuttings dryer can be equipped with VFD control box, all main parameters are easily adjusted from the HMI touch screen.

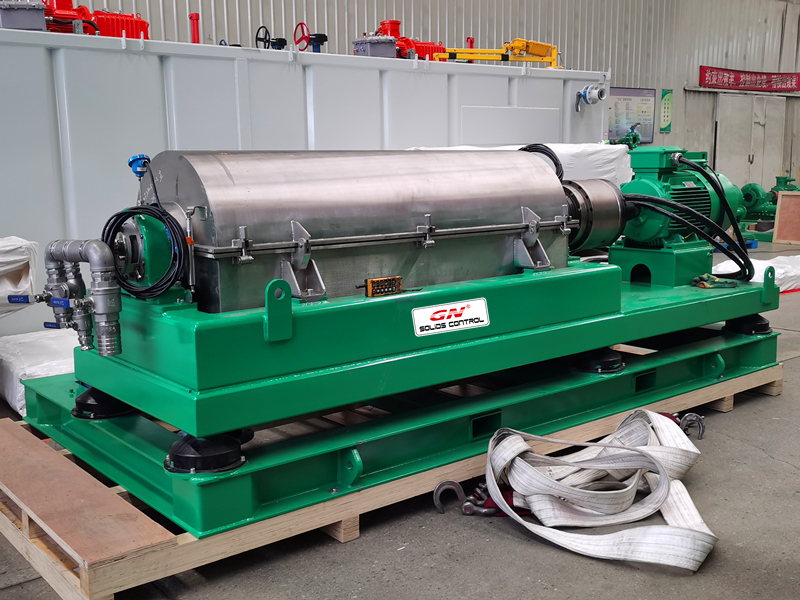

2.GN Decanter Centrifuge
Decanter centrifuge is one of the key treating components in drilling mud solids control and drilling waste management. GN Solids control manufactures different rotating bowl sizes that suit for different treating capacity demands.
As for this drilling company, GN Solids Control provided one set 14 inch bowl centrifuge. Same with GN Cuttings Dryer, GN decanter centrifuge is easy to operate as the main working parameters can be adjusted easily in GN centrifuge’s VFD box.
In order to use for a long life consider the weariness, GN centrifuge rotating bowl is made of duplex stainless stell 2305 or 2204. And all the solids discharged port are protected by tungsten inserts. Even the inside screw propeller is fixed with tungsten carbide tiles.
