DESCRIPTION

ZCQ series Vacuum Degasser is a special-purpose device and a new type one for the treatment of gas in the drilling fluids. It can get rid of various gas of invasive drilling quickly. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Also, at the same time vacuum degasser can be used as a heavy-power agitator and supported applicable to all types of mud circulation purification system. The vaccum degasser design of the structure is scientific and rational. So we are able to achieve an effective gas-liquid separation, filter out impurities and to ensure that the exhaust pipe is always smooth.

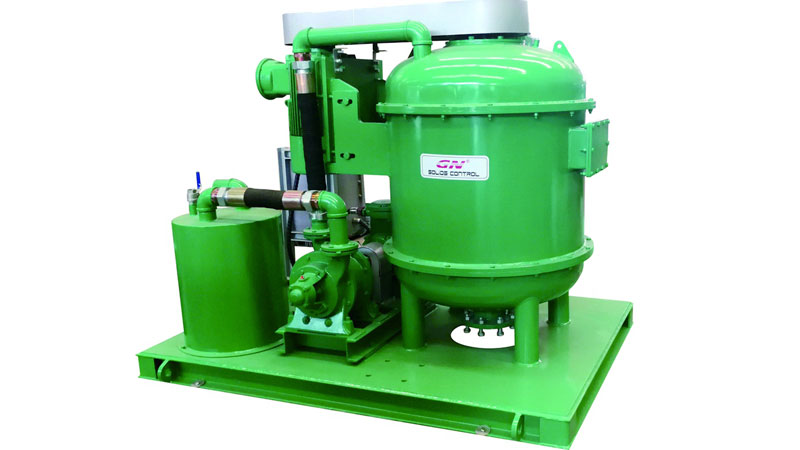

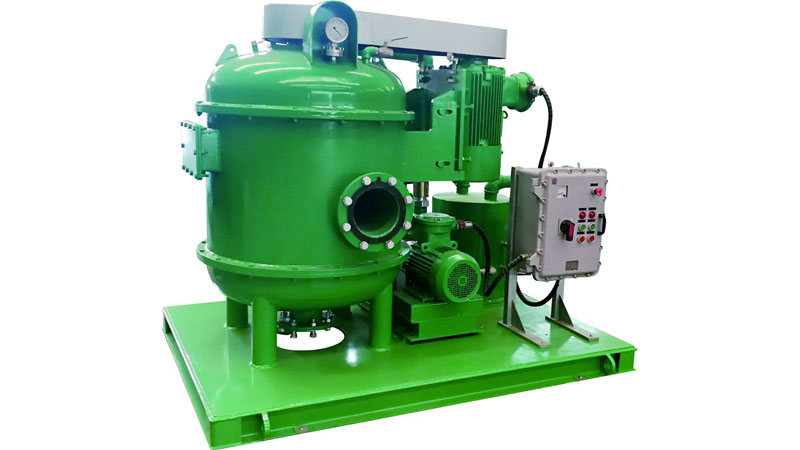

ZCQ Vacuum Degasser Factory Photo

Vacuum degasser0 alt

ZCQ Series Vacuum Degasser Technical Parameters

ModelGNZCQ270AGNZCQ360A
Main diameter 920mm
Capacity  ≤270 m3/h (1188GPM) ≤360 m3/h (1584GPM)
Vacuum Degree -0.02~-0.04 Mpa
Handling Efficiency ≥95%
Main Motor Power 22Kw (30HP) 37Kw (50HP)
Pump Motor Power 7.5Kw (10 HP)
Rotation Speed 700RPM 860RPM
EX Standard ExdIIBt4 / IEC EX/ ATEX
Suction Line Size 6 Inch
Output Size 8 Inch
Weight 1730kg 1870kg
Dimension: L×W×H 2100×1605×1729mm

Vacuum Degasser Features & Benefits

GNZCQ Series Vacuum Degassers are able to service the needs of any application .It is usually installed after the shakers. Each degasser effectively and efficiently removes gases from gas-cutmud, thus ensuring that the proper mud weight is pumped down hole. In doing so, the degassers are able to aid in the prevention of potential blowouts. Unlike the traditional vacuum degasser, GNZCQ vacuum degasser is a self-contained unit, GN Vacuum Degasser is monitored by level sensor to protect over suction of the fluids. The gas-cut mud is drawn into the degasser by a vacuum created by a regenerative vacuum without needing centrifugal pump . GN degasser can act as a big agitator for the drilling mud, which helps the treatment for desander and desilter.

Vacuum Degasser for Drilling Fluids Solids Control:

Vacuum Degasser is also called mud/Gas separator. Mud/gas separators (Degasser) is  the first units of solids control equipment arranged to treat drilling mud. As such, they process all of the drilling mud from the flow line before the mud reaches the primary shale shakers. The units have no moving parts and rely on the density difference between the gas and the mud for removal. The process is simple, yet very effective for well drilling fluids processing system.

Vaccum Degasser  is used to remove the small entrained gas bubbles left in the mud by the mud/gas separator. These units are positioned downstream from mud/gas separators, gumbo removal equipments (if utilized), shale shakers and mud conditioners (if utilized), while hydrocyclone desander and Decanting centrifuges follow in the arrangement.
