Sludge Vacuum Pump

Sludge Vacuum Pump

Waste vacuum pump, also named as solids transfer pump. With special structure design, it can be used at tough environmental for solids transfer, high working performance and less maintenance.
Categories:
Waste Management.

DESCRIPTION

Waste vacuum pump, also named as solids transfer pump. It is a pneumatic slurry transfer vacuum pump for liquid,  slurry, and solids transfer. With special structure design, it can be used at tough environmental for solids  transfer, high working performance and less maintenance. The pump can transfer material with high gravity and high  density, solids content max. up to 80%.

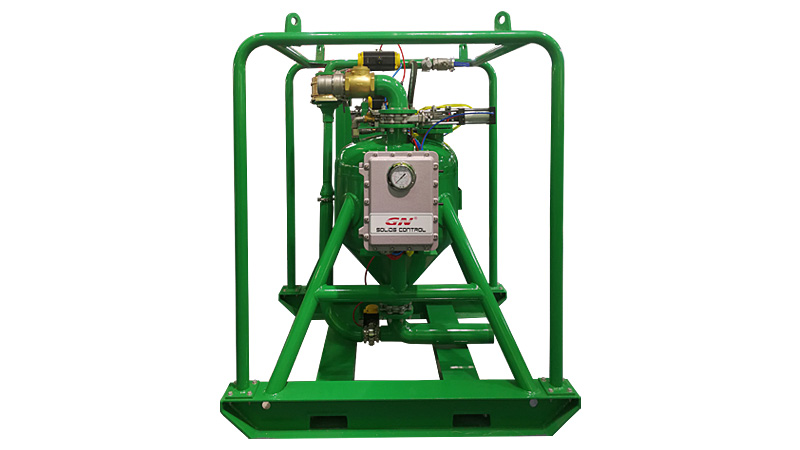

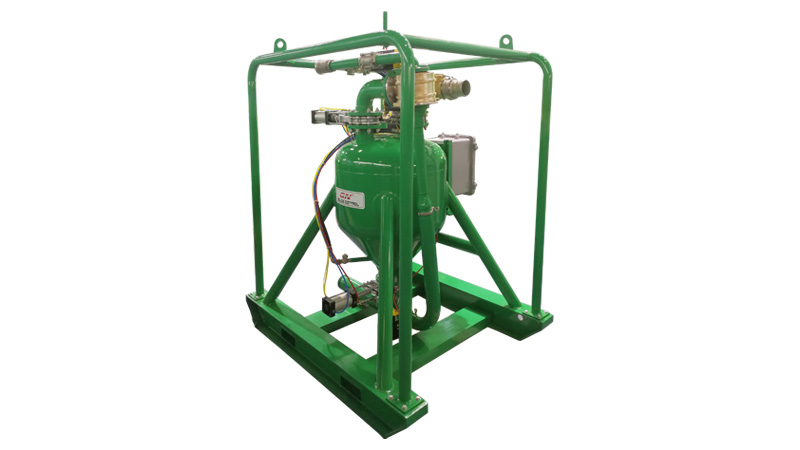

des sludge vacuum pump 0324

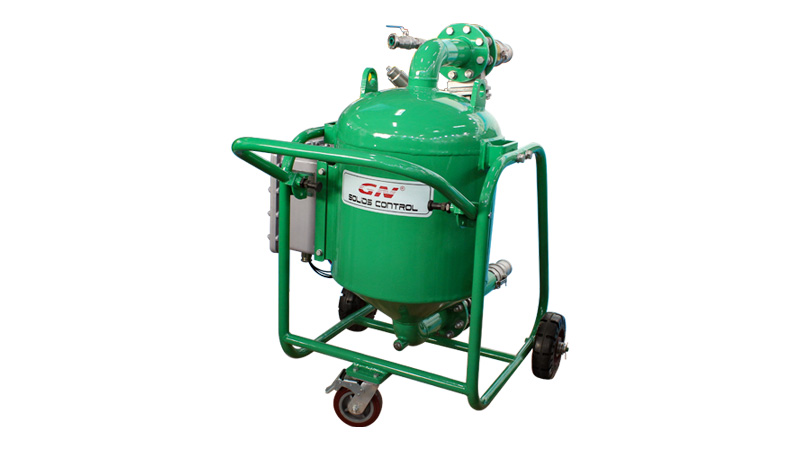

des sludge vacuum pump 3

GN Sludge Vacuum Pump Parameter

ModelGNSP-40AGNSP-20AGNSP-10A
Max Capacity(m³/h) 40m³/h 20m³/h 10m³/h
Inlet/Outlet Size(Inch) 4” 3”
Vacuum Degree 25”HG (Mercury Column) 85Kpa/25 inch HG(Mercury Column)
Max Suction Distance(m) 50m
Max Discharge Distance(m) 1000m 500m
Max Solids Content 80%
Max Solids Size(mm) 75mm 50mm
Pressure Request 550Kpa-785Kpa (80-114PSI) 550Kpa-690Kpa (80-100PSI)
Air Demand 17m³/min (600CFM) 8m³/min(280CFM) 4.3 m³/min(150CFM)
Weight(kg) 875kg 320kg 290kg
Dimension:L×W×H(mm) 1690×1400×1989mm 1357×916×1253mm 1317×806×1273mm

GN Sludge Vacuum Pump Factory Testing Video

Material transfer applications
