NEWS

April 23 2014

GN Displayed the big bowl big volume centrifuge in the 2014 CIPPE Beijing Oil show, before the show,we had the contract with the Canada oilfield service company to supply the big bowl decanter centrifuge. After show, GN  get it ready for shipping to Canada oilfield for the solids and liquid separation projects for the Canada based oilfield service company.The Canada oilfield service company requires very high standard quality and CSA standard class I division I compliance flame proof electric motors and control system.

Oilfield liquid and solids separation is one of the key market for GN Solids Control.GN Big bowl decanter centrifuge is VFD driven with PLC control. The big bowl decanter centrifuge with 22 inch bowl size and 71inch bowl length, this big centrifuge is able to handle fluids up to 400GPM.

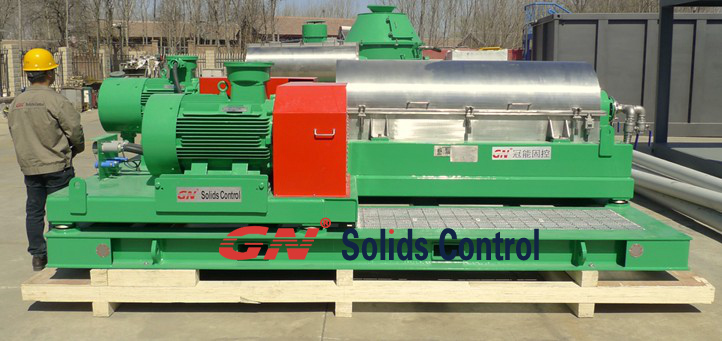

Canada Big Bowl decanter Centrifuge

GN Big Bowl Decanter Centrifuge applied in the Oilfield.

Since the GNLW553-VFD big bowl decanter centrifuge run at speed from 0 RPM to 2500 RPM, the big range G force allow drilling contractors or oilfield service companies to use for many application from Solids Control including high gravity solids separation and low gravity solids separation as well as the for dewatering in the drilling waste management systems. Moreover as the big bowl decanter centrifuge is fitted with high torch gear box and big power motors, this make the centrifuge available for oily slugged separation for high volume.

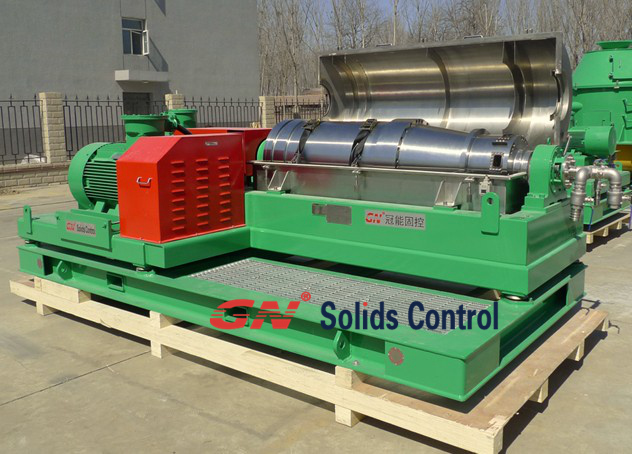

oilfield Decanter Centrifuge Canada

GN Big bowl Oilfield Decanter Centrifuge Features:

  •  One side motor design big bowl centrifuge for more space operation.
  • The Big Bowl centrifuge Bowl Cylindrical and Conical section made from Duplex Stainless Steel 2205 by centrifugal casting.
  • Big bowl centrifuge other Parts of the bowl assembly material: stainless steel SS316L.
  • Screw protection for the big bowl decanter centrifuge: Tungsten Carbide Tiles for longer life and easier replacement.
  • Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.
  • The liquid discharge for the big bowl centrifuge is fitted with easily adjustable liquid discharge weir height for flexible application.
  • Big Bowl assembly supported by tighten belt for protection of bearing in moving.
  • Genuine SKF bearing for longer and heavy duty drilling mud in the oilfield.

If you have already missed the CIPPE Beijing Oil show, you can have another chance to visit GN Solids America 2014 OTC in Houston, USA, or come to either Beijing or Houston to check GN big bowl decanter centrifuge in stock.
